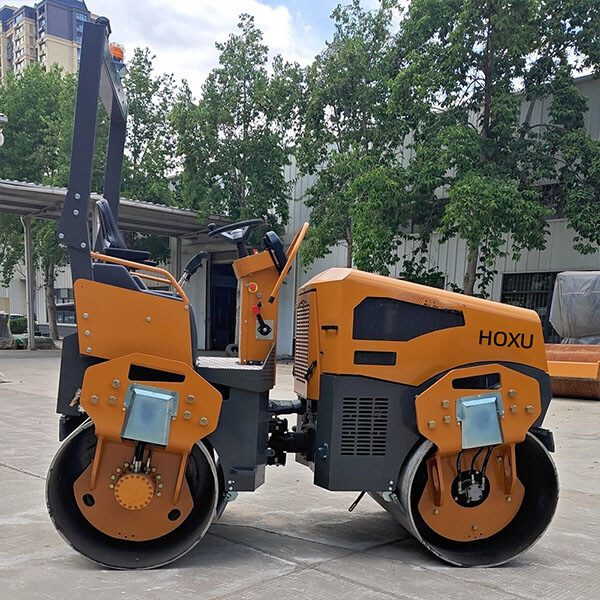

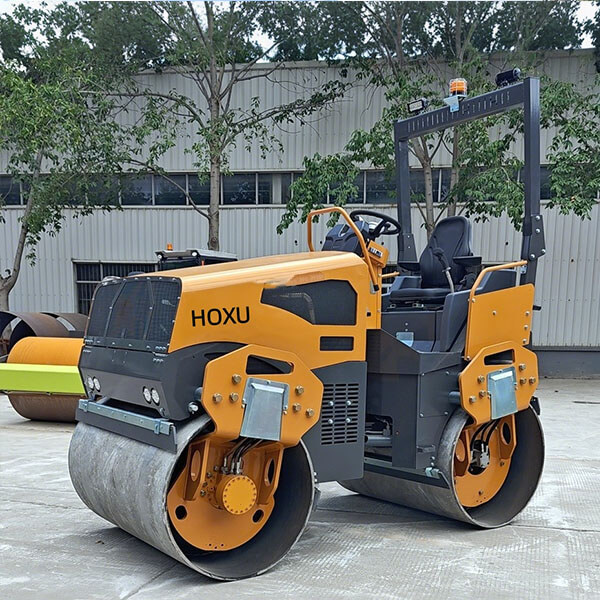

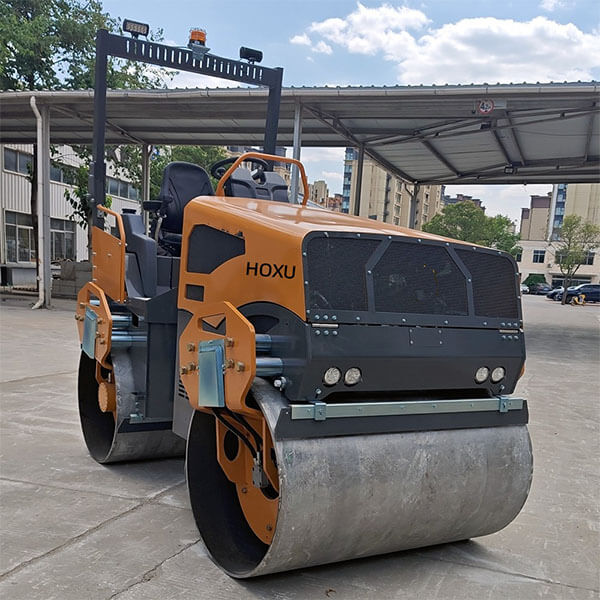

Articulated double drum vibratory road roller HX5000
Quick Details
Feature: Road Roller Condition: New Certification: ISO, CE Application: Construction Model Number:HX5000 Operating Weight:4700 kg Static Linear Pressure: 135 n/cm Vibration Frequency: 50 Hz Vibration Amplitude: 0.5 mm Vibration Force: 80 Kn Dimension:2920*1580*2025 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX5000 |
| Overall length | mm | 2920/2850 |
| Overall width | mm | 1580 |
| Overall height | mm | 2025/2680 |
| Drum diameter | mm | 900 |
| Drum width | mm | 1400 |
| Weight | ||
| Operating weight | kg | 4700 |
| Power | ||
| Engine brand | CHANGCHAI | |
| Engine model | ZN490B | |
| Engine type | Diesel in-line four-stroke Water cooling | |
| Num. of cylinders | pcs | 4 |
| Engine rated power/speed | Kw/rpm | 36/2400 |
| Drive mode | Variable displacement pison pump infinitely variable three poclain driver motor | |
| Travel | ||
| Travel speed | km/h | 0-12 |
| Main performance | ||
| Working brake | Variable displacement piston pump | |
| Steering method | Hydraulic cylinder articulated steering | |
| Steering system | Swing articulated | |
| Outside the turning radius | mm | 4380 |
| Wheelbase | mm | 1950 |
| Theoretical climbing ability(vibration on/off) | % | 40 |
| Vibrating drum | Forward | |
| Drive form | Hydraulic motor | |
| Vibration frequency | hz | 50 |
| Vibration amplitude | mm | 0.5 |
| Vibration force | kn | 85 |
| Static line load | n/cm | 155 |
| Sprinkler system form | Intemittent pressure spray | |
| Electrical equipment | V | 12 |
| Fuel capacity | L | 44.5 |
| Hydraulic oil capacity | L | 60 |
| Water tank capacity | L | 180 |
