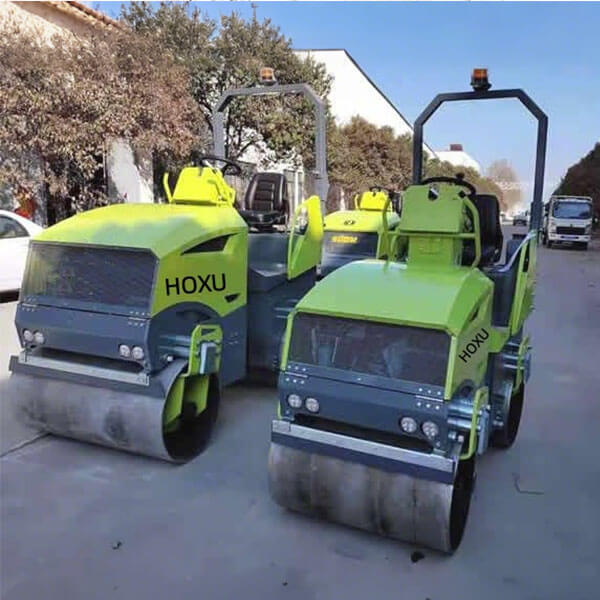

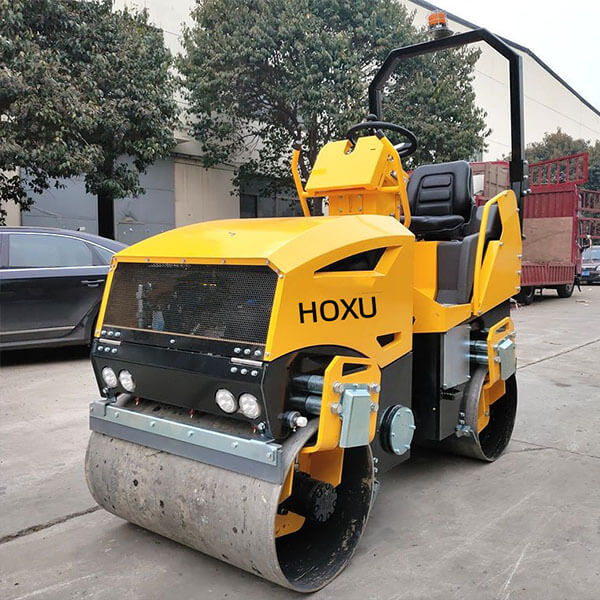

Articulated double drum vibratory road roller HX2000
Quick Details
Feature: Road Roller Condition: New Certification: ISO, CE Application: Construction Model Number:HX2000 Operating Weight:1850 kg Static Linear Pressure: 82 n/cm Vibration Frequency: 65 Hz Vibration Amplitude: 0.5 mm Vibration Force: 40 Kn Dimension:2210*1050*1790 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX2000 |
| Overall length | mm | 2210/2150 |
| Overall width | mm | 1050 |
| Overall height | mm | 1790/2465 |
| Drum diameter | mm | 560 |
| Drum width | mm | 900 |
| Weight | ||
| Operating weight | kg | 1850/1700/1700
|
| Power | ||
| Engine brand | YANMAR/HONDA/BRIGGS | |
| Engine model | 3TNV68-AMW/GX630 | |
| Engine type | Diesel four-stroke water cooling | |
| Num. of cylinders | 3/2/2 | |
| Engine rated power/speed | 14.7&13.3/3600 | |
| Drive mode | Variable displacement pison pump continuously variable two-wheel drive motor in parallel | |
| Travel | ||
| Travel speed | km/h | 0-6 |
| Main performance | ||
| Working brake | Variable displacement piston pump | |
| Steering method | Hydraulic cylinder articulated steering | |
| Steering system | Swing articulated | |
| Outside the turning radius | mm | 2800/3850 |
| Wheelbase | mm | 1515 |
| Theoretical climbing ability(vriation on/off) | % | 30/35 |
| Vibrating drum | forward | |
| Drive form | Hydraulic motor | |
| Vibration frequency | hz | 65 |
| Vibration amplitude | mm | 0.5 |
| Vibration force | kn | 40 |
| Static line load | n/cm | 82 |
| Sprinkler system form | Intermittent pressure spray | |
| Electrical equipment | V | 12 |
| Fuel capacity | L | 36 |
| Hydraulic oil capacity | L | 45 |
| Water tank capacity | L | 160 |
