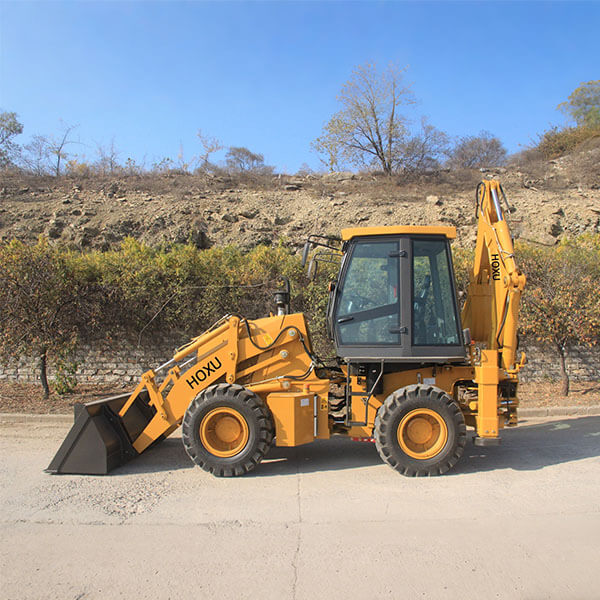

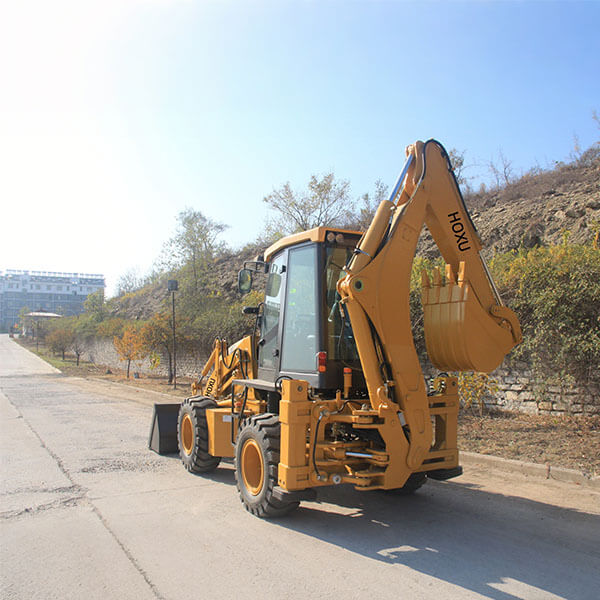

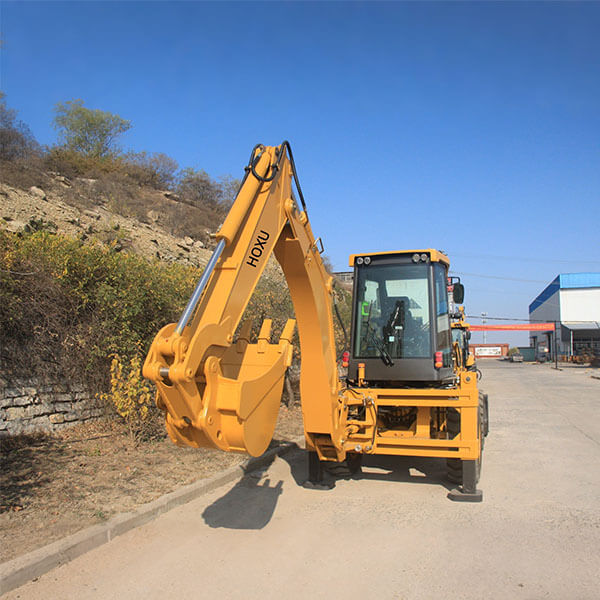

Backhoe Loader WZ30-25
Quick Details
Feature: Backhoe loader Condition: New Application: Construction Certification: ISO, CE Model Number:WZ30-25 Operating Weight:7640 kg Rated Power:75/2200 kw/rpm Loading Lifting capacity:2500 kg Bucket Capacity: 1.0m³ Backhoe Capacity:0.3 m³ Dimension:5910*2268*3760 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | WZ30-25 |
| Overall length | mm | 5910 |
| Overall width | mm | 2268 |
| Overall height | mm | 3760 |
| Weight | ||
| Operating weight | kg | 7640 |
| Loading lifting capacity | Kg | 2500 |
| Power | ||
| Engine manufacturer | DEUTZ POWER | |
| Engine model | WP4G95E221 | |
| Type | In-line Direct Injection four-stroke Injection combustion chamber | |
| Cylinder*inside diameter *stroke | 4-105*130 | |
| Engine rated power/speed | kw/rpm | 70/2200 |
| Max torque | N.m | 301.7 |
| Min fuel consumption rate | g/km.h | 218 |
| Displacement | L | 4.5 |
| Gear | 4F/4R | |
| Travel | ||
| Travel max speed | km/h | 22 |
| Transmission system | ||
| Transmission model | YH280 | |
| Torque converter type | Single-stage Three Elements | |
| Main performance | ||
| Rated load | t | 2.5 |
| Bucket capacity | m³ | 1.0 |
| Breakout force | kn | 38 |
| Digging depth | mm | 52 |
| Max dumping height | mm | 2742 |
| Max dumping distance | mm | 1062 |
| Min ground clearance | mm | 300 |
| Wheel base | mm | 2250 |
| Min turning radius | mm | 5018 |
| Backhoe capacity | m³ | 0.3 |
| Max. Digging depth | mm | 4082 |
| Max. Pulling force | kn | 39 |
| Digging power of excavator grab | kn | 46.5 |
| Digging power of dipper | kn | 31 |
| Bucket lifting time | s | 5.4 |
| Bucket loweing time | s | 3.1 |
| Bucket discharge time | s | 2.0 |
| Swing angle of excavator grab | ° | 190 |
| Tyre size | 16/70-20 | |
| Front/bear wheel pressure | Mpa | 0.22/0.22 |
