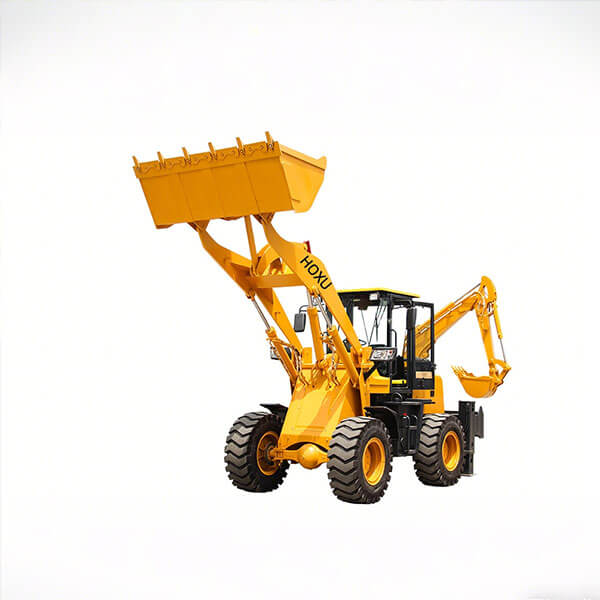

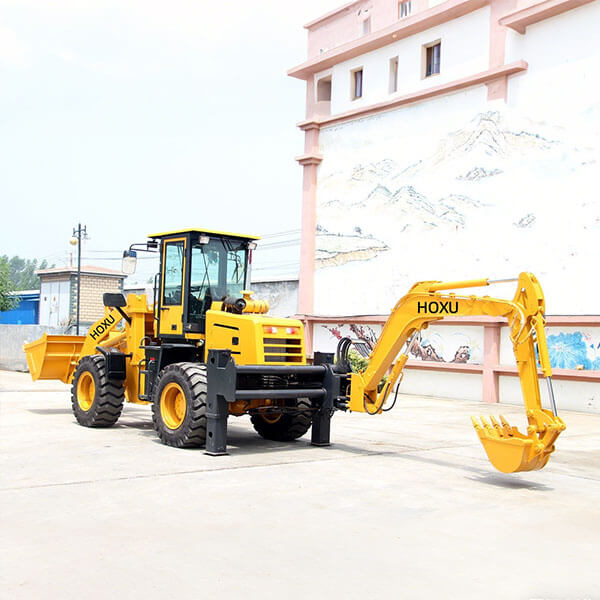

Backhoe Loader HX20-28
Quick Details
Feature: Backhoe loader Condition: New Certification: ISO, CE Application: Construction Model Number:HX20-28 Total Weight:5400 kg Rated Power:76/2400 kw/rpm Loader Bucket Capacity:1.0 m³ Max. lifting Height: 4300 mm Backhoe bucket Capacity:0.2 m³ Dimension:6200*1960*2800 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX20-28 |
| Overall length | mm | 6200 |
| Overall width | mm | 1960 |
| Overall height | mm | 2800 |
| Weight | ||
| Total weight | kg | 5400 |
| Power | ||
| Engine model | Yunnai YN38GBZ | |
| Engine Type | Turbocharged four stroke | |
| Cylinder number-diameter | mm | 4-102 |
| Engine rated power/speed | kw/rpm | 76/2400 |
| Travel | ||
| Max. travel speed | km/h | 28 |
| Transmission system | ||
| Gear | 2F/2R | |
| Torque converter type | ZL29A | |
| Steering angle(°) | 33 | |
| Main performance | ||
| Loader bucket capacity | m³ | 1 |
| Max. breakout force | kn | 42 |
| Max. lifting height | mm | 4300 |
| Time for shovel acition | s | 12 |
| Excavator bucket width | mm | 600 |
| Excavator bucket capacity | m³ | 0.2 |
| Max. digging depth | mm | 2600 |
| Max. digging height | mm | 4300 |
| Max unloading height | mm | 2300 |
| Max dumping distance | mm | 900 |
| Min. digging radius | mm | 4500 |
| Excavator rotation angle | ° | 180 |
| Min ground clearance | mm | 290 |
| Min. climbing ability | mm | 25 |
| Min. turning radius | mm | 4600 |
| Wheel base | mm | 2550 |
| Track width | mm | 1580 |
| Wheel pressure | kpa | 250 |
| Service brake | Air over hydraulic caliper disc brake | |
| Parking brake | manual | |
| Braking distance | mm | 600 |
| Drive type | 4-wheel drive | |
| Transmission type | hydraulic | |
| Fuel tank capacity | L | 50 |
| Hydraulic tank capactiy | L | 50 |
