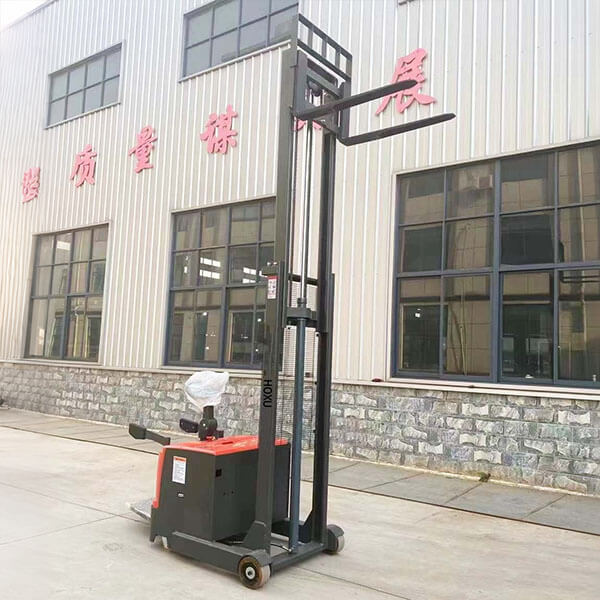

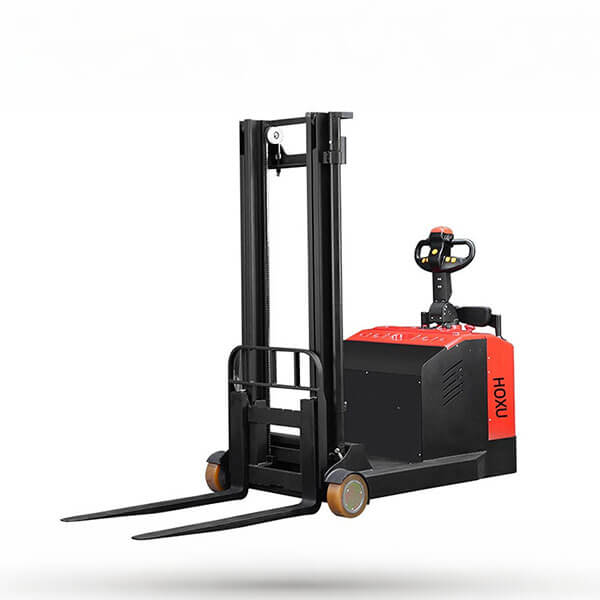

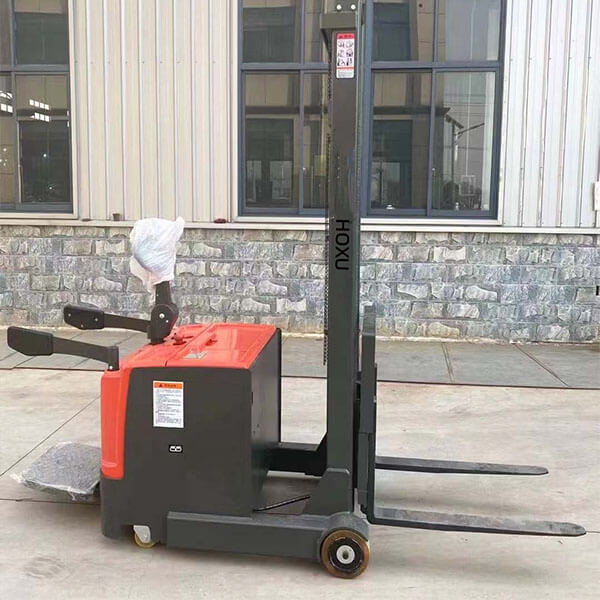

Counterbanlanced full-electric stacker HX22014
Quick Details
Feature: Conterbanlanced full-electric Condition: New Application: Warehouse/Logistic Certification: ISO, CE Model Number:HX22014 Rated load capacity: 1500kg Max.lift height: 1600-3500mm Min.turning radius: 1750mm Dimension: 3000*860*1600 mm Place of origin: shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX22014 | HX22015 | HX22016 | HX22017 | HX22018 |
| Overall length(step folded/unfold) | mm | 3000/3400 | 3000/3400 | 3000/3400 | 3000/3400 | 3000/3400 |
| Overall width | mm | 850 | 850 | 850 | 850 | 850 |
| Overall height(mast closed/open) | mm | 2080/2080 | 1600/2500 | 1850/3000 | 2080/3500 | 2350/4000 |
| Wheel width | mm | 860 | 860 | 860 | 860 | 860 |
| Chassis width | mm | 860 | 860 | 860 | 860 | 860 |
| Fork size | mm | 1100*100*40 | 1100*100*40 | 1100*100*40 | 1100*100*40 | 1100*100*40 |
| Weight | ||||||
| Rated load capacity | kg | 1500 | 1500 | 1500 | 1500 | 1500 |
| Power | ||||||
| Battery voltage/capacity | v/ah | 24/210 | 24/210 | 24/210 | 24/210 | 24/210 |
| Drive motor | kw | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Lifting motor | kw | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Battery reference service time | h | 6 | 6 | 6 | 6 | 6 |
| Travel | ||||||
| Travel speed(rated load/unload) | Km/h | 5/8 | 5/8 | 5/8 | 5/8 | 5/8 |
| Speed control type | Stepless | Stepless | Stepless | Stepless | Stepless | Stepless |
| Main performance | ||||||
| Control type | Handle | Handle | Handle | Handle | Handle | |
| Lifting height | mm | 1600 | 2000 | 2500 | 3000 | 2500 |
| Load centre | mm | 550 | 550 | 550 | 550 | 550 |
| Min.ground clearance of fork surface | mm | 100 | 100 | 100 | 100 | 100 |
| Max.height of control handle from ground | mm | 1470 | 1470 | 1470 | 1470 | 1470 |
| Min.height of control handle from ground | mm | 970 | 970 | 970 | 970 | 970 |
| Front wheel tread | mm | 490 | 490 | 490 | 490 | 490 |
| Min. Turning radius(step lowered) | mm | 1650 | 1650 | 1650 | 1650 | 1650 |
| Gradeability | ° | 3-5 | 3-5 | 3-5 | 3-5 | 3-5 |
| Max.traction forece under full load | kn | 1500 | 1500 | 1500 | 1500 | 1500 |
| Drive wheel | mm | 250*80 | 250*80 | 250*80 | 250*80 | 250*80 |
| Auxiliary wheel | mm | 125*55 | 125*55 | 125*55 | 125*55 | 125*55 |
| Drive wheel material | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | |
| Balance wheel | mm | 150*50 | 150*50 | 150*50 | 150*50 | 150*50 |
