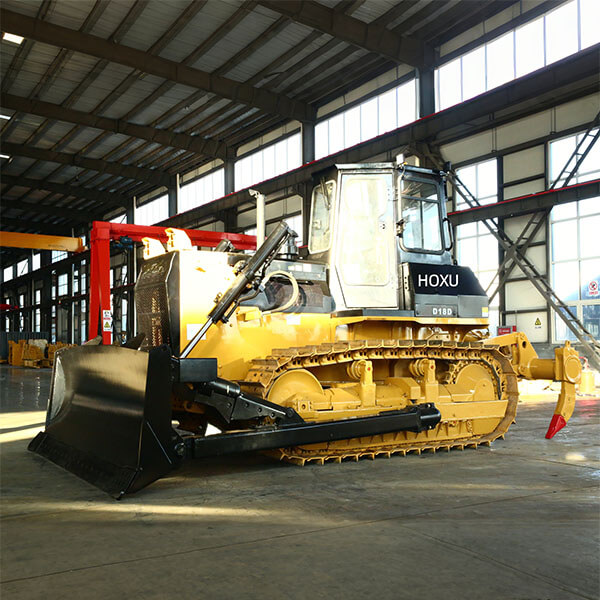

Crawler bulldozer SHM-D18D
Quick Details
Feature: Crawler Bulldozer Condition: New Application: Construction Certification: ISO, CE Engine Model:WD10G178E25 Operating weight: 16400 kg Rated Power:131/1850 kw/rpm Dimension:4990*3440*3110 mm Blade Capacity:4.5 m³ Max.Tracktion Force:144 k.n Max. Lift Height : 1095 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | SHM-D18D |
| Overall length | mm | 4990 |
| Overall width | mm | 3440 |
| Overall height | mm | 3110 |
| Blade length*height | mm | 3440*1150 |
| Weight | ||
| Operating weight | kg | 16400 |
| Blade capacity | m³ | 4.5 |
| Power | ||
| Engine model | WD10G178E25 | |
| Engine rated power/speed | Kw/rps | 131/1850 |
| Travel | ||
| Travel max speed | km/h | 9.63 |
| Gears | 3F/3R | |
| Main performance | ||
| Max traction force | K.n | 144 |
| Max grade ability | ° | 30 |
| Max. lift height | mm | 1095 |
| Max depth | mm | 540 |
| Min. ground clearance | mm | 405 |
| Max. Inclination of blade | mm | 400 |
| Grounding length | mm | 2430 |
| Ground specific pressure | Mpa | 0.066 |
| No.of track shoes(each side) | pcs | 37 |
| Width of track shoe | mm | 510 |
| Pitch | mm | 203.2 |
| No.of carrier rollers(each side) | pcs | 2 |
| No.of track roller(each side) | pcs | 6 |
| Blade type | Straight-title blade | |
| Coolant capacity | L | 79 |
| Fuel tank capacity | L | 300 |
| Engine oil capacity | L | 19 |
