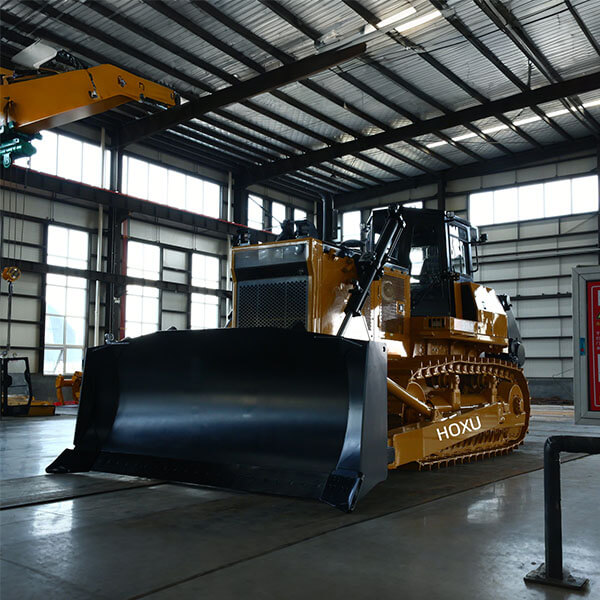

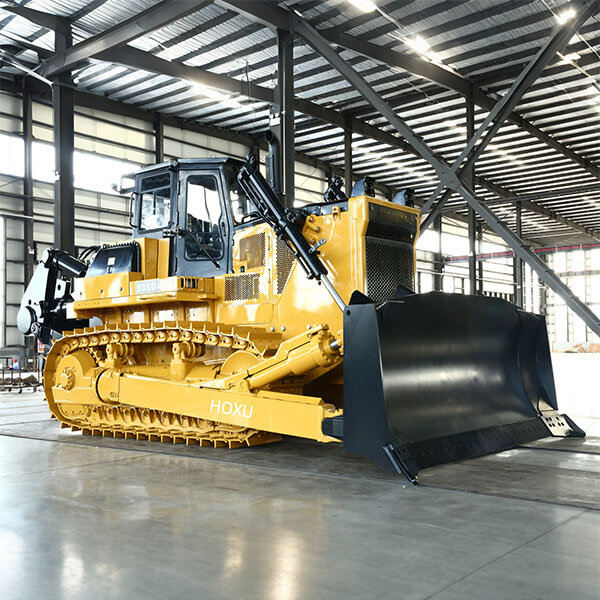

Crawler bulldozer SHM-D36D
Quick Details
Feature: Crawler Bulldozer Condition: New Application: Construction Certification: ISO, CE Engine Model:NTA855-C360 Operating weight: 37200 kg Rated Power:268/2000 kw/rpm Dimension:6535*4150*3515 mm Blade Capacity: 10 m³ Max.Tracktion Force:320 k.n Max. Lift Height : 1560 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | SHM-D36D |
| Overall length | mm | 6535 |
| Overall width | mm | 4150 |
| Overall height | mm | 3515 |
| Blade length*height | mm | 4150*1592 |
| Weight | ||
| Operating weight | kg | 37200 |
| Power | ||
| Engine model | NTA855-C360 | |
| Engine rated power/speed | Kw/rps | 268/2000 |
| Travel | ||
| Travel max speed | km/h | 11.5 |
| Gears | 3F/3R | |
| Main performance | ||
| Blade capacity | m³ | 10 |
| Max traction force | K.n | 320 |
| Max grade ability | ° | 30 |
| Max. lift height | mm | 1560 |
| Max depth | mm | 560 |
| Min. ground clearance | mm | 500 |
| Max. Inclination of blade | mm | 1000 |
| Grounding length | mm | 3150 |
| Ground specific pressure | Mpa | 0.105 |
| No.of track shoes(each side) | pcs | 41 |
| Width of track shoe | mm | 560 |
| Pitch | mm | 228.6 |
| No.of carrier rollers(each side) | pcs | 2 |
| No.of track roller(each side) | pcs | 7 |
| Blade type | Straight-title blade | |
| Coolant capacity | L | 121 |
| Fuel tank capacity | L | 640 |
| Engine oil capacity | L | 47 |
