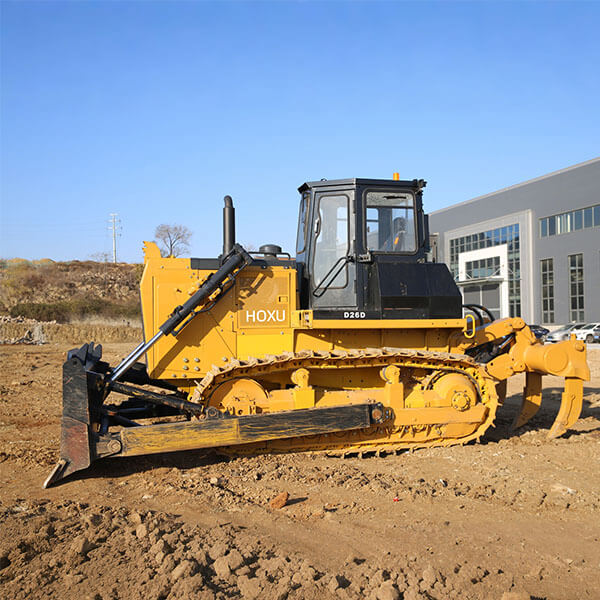

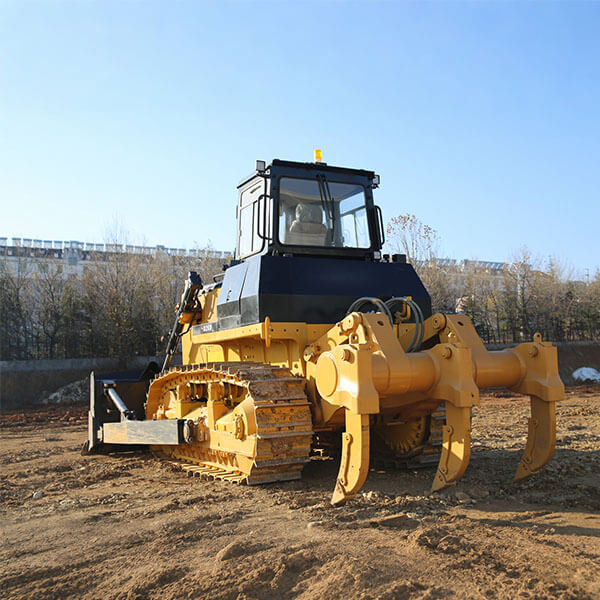

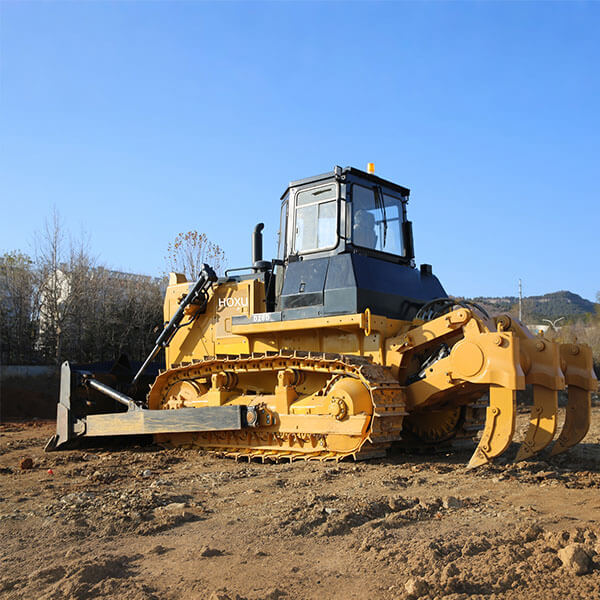

Crawler bulldozer SHM-D26D
Quick Details
Feature: Crawler Bulldozer Condition: New Application: Construction Certification: ISO, CE Engine Model:NT855-C280 Operating weight: 23500 kg Rated Power:187/1850 kw/rpm Dimension:5390*3735*3350 mm Blade Capacity: 6.4 m³ Max.Tracktion Force:203 k.n Max. Lift Height : 1210 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | SHM-D26D |
| Overall length | mm | 5390 |
| Overall width | mm | 3735 |
| Overall height | mm | 3350 |
| Blade length*height | mm | 3735*1317 |
| Weight | ||
| Operating weight | kg | 23500 |
| Power | ||
| Engine model | NT855-C280 | |
| Engine rated power/speed | Kw/rps | 187/1850 |
| Travel | ||
| Travel max speed | km/h | 11.2 |
| Gears | 3F/3R | |
| Main performance | ||
| Blade capacity | m³ | 6.4 |
| Max traction force | K.n | 203 |
| Max grade ability | ° | 30 |
| Max. lift height | mm | 1210 |
| Max depth | mm | 540 |
| Min. ground clearance | mm | 405 |
| Max. Inclination of blade | mm | 735 |
| Grounding length | mm | 2730 |
| Ground specific pressure | Mpa | 0.077 |
| No.of track shoes(each side) | pcs | 38 |
| Width of track shoe | mm | 560 |
| Pitch | mm | 216 |
| No.of carrier rollers(each side) | pcs | 2 |
| No.of track roller(each side) | pcs | 6 |
| Blade type | Straight-title blade | |
| Coolant capacity | L | 79 |
| Fuel tank capacity | L | 450 |
| Engine oil capacity | L | 45 |
