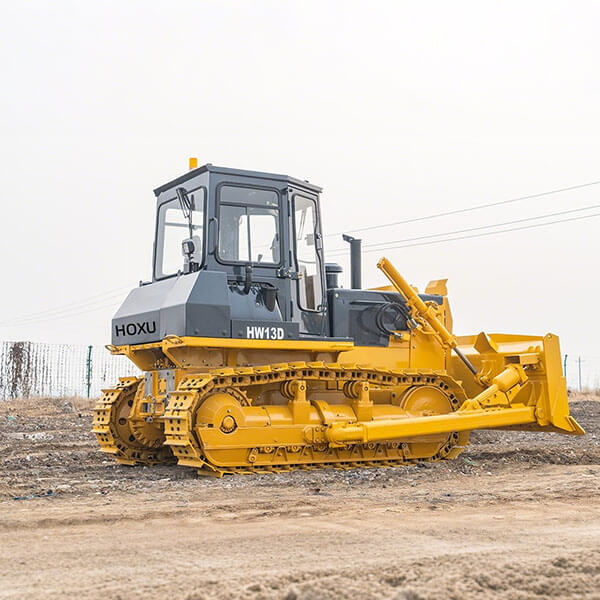

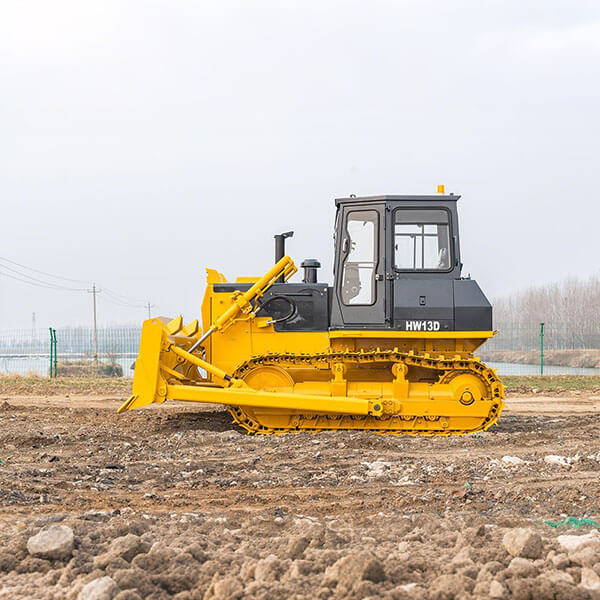

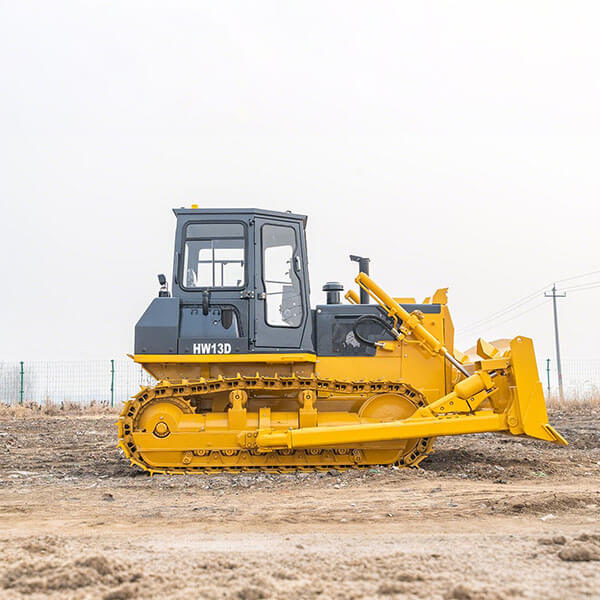

Crawler bulldozer HW13D
Quick Details
Feature: Crawler Bulldozer Condition: New Application: Construction Certification: ISO, CE Model number: HW13D Operating weight: 13700 kg Rated Power: 95.5/1900 kw/rpm Blade capacity: 3.7/3.4 m³ Max. lifting height: 930 mm Min. turn radius: 3880 mm Dimention: 4492*3285*2950 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | HW13D |
| Overall length | mm | 4492 |
| Overall width | mm | 3285 |
| Overall height | mm | 2950 |
| Blade length*height | mm | 3185*1090 |
| Weight | ||
| Operating weight | kg | 13700 |
| Blade weight | kg | 1440/1930 |
| Ripper weight | kg | 1310 |
| Power | ||
| Engine model | SC8D143G2B1 | |
| Engine rated power/speed | Kw/rps | 95.5/1900 |
| Travel | ||
| Forward speed | km/h | 0-9.8 |
| Reverse speed | km/h | 0-11.9 |
| Chassis system | ||
| Track center distance | mm | 1880 |
| Track shoe width | mm | 460 |
| Num. of track shoes(one side) | pcs | 38 |
| Chain track pitch | mm | 190 |
| Num. of rollers(one side) | pcs | 2 |
| Num. of supporting wheels (one side) | pcs | 6 |
| Ground clearance | mm | 320 |
| Main performance | ||
| Min. turning radius | mm | 3880 |
| Ground length | mm | 2365 |
| Ground pressure | Mpa | 0.063 |
| Blade type | Straight tilt blade/angle blade | |
| Blade capacity | m³ | 3.7/3.4 |
| Blade Lifting height | mm | 1090 |
| Blade cutting depth | mm | 590 |
| Max. ripper depth | mm | 467 |
| Max. Lifting height | mm | 459 |
| Fuel tank capacity | L | 280 |
| Hydraulic tank capacity | L | 73 |
