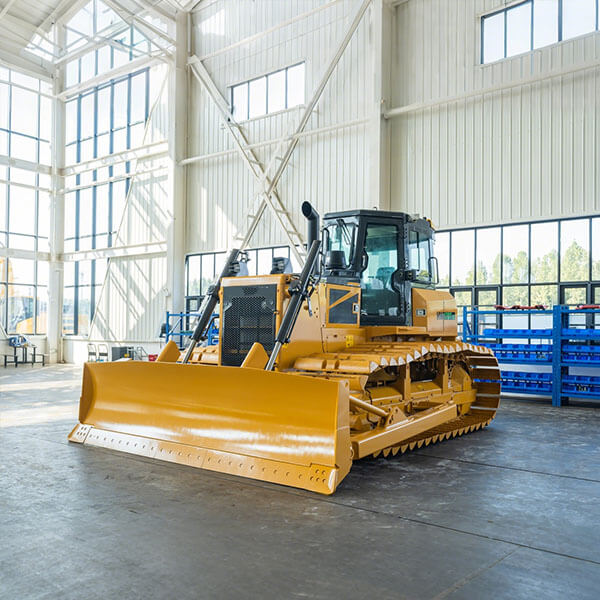

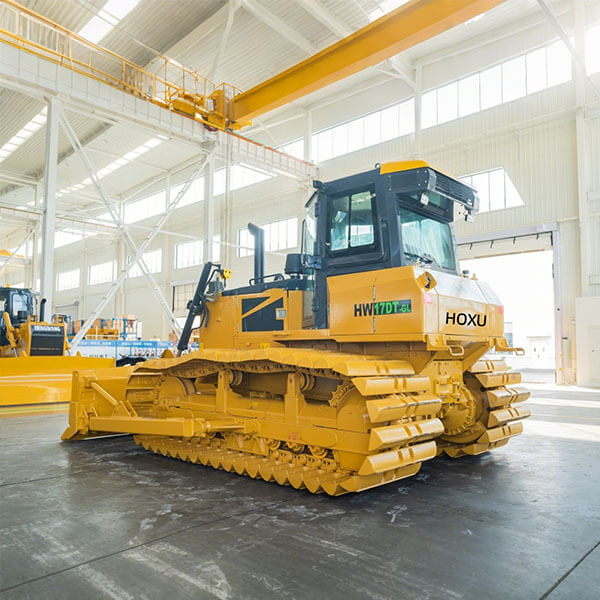

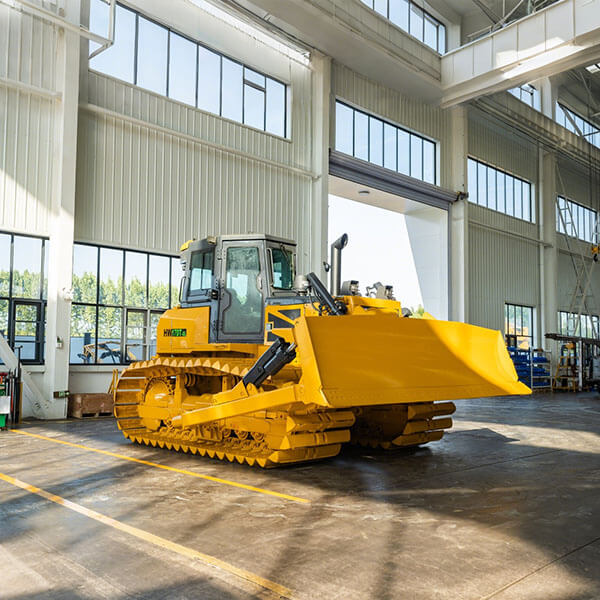

Crawler bulldozer HX17DT-GL
Quick Details
Feature: Crawler Bulldozer Condition: New Certification: ISO, CE Application: Construction Model number: HX17DT-GL Operating weight: 19900 kg Rated Power: 140/1900 kw/rpm Max. lifting height: 1140 mm Min. turn radius: 4725 mm Ground clearance: 400 mm Dimention: 5710*4230*3256 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX17DT-GL |
| Overall length | mm | 5710 |
| Overall width | mm | 4230 |
| Overall height | mm | 3256 |
| Blade length*height | mm | 4230*960 |
| Weight | ||
| Operating weight | kg | 19900 |
| Power | ||
| Engine model | WP9HG190E474 | |
| Engine rated power/speed | Kw/rps | 140/1900 |
| Chassis system | ||
| Track center distance | mm | 2300 |
| Track shoe width | mm | 1100 |
| Num. of track shoes(one side) | pcs | 44 |
| Chain track pitch | mm | 203 |
| Num. of rollers(one side) | pcs | 2 |
| Num. of supporting wheels (one side) | pcs | 7 |
| Ground clearance | mm | 400 |
| Main performance | ||
| Min. turning radius | mm | 4725 |
| Ground length | mm | 3140 |
| Ground pressure | Mpa | 0.025 |
| Blade type | Straight tilt blade | |
| Blade Lifting height | mm | 1140 |
| Blade cutting depth | mm | 485 |
| Fuel tank capacity | L | 345 |
| Hydraulic tank capacity | L | 75 |
