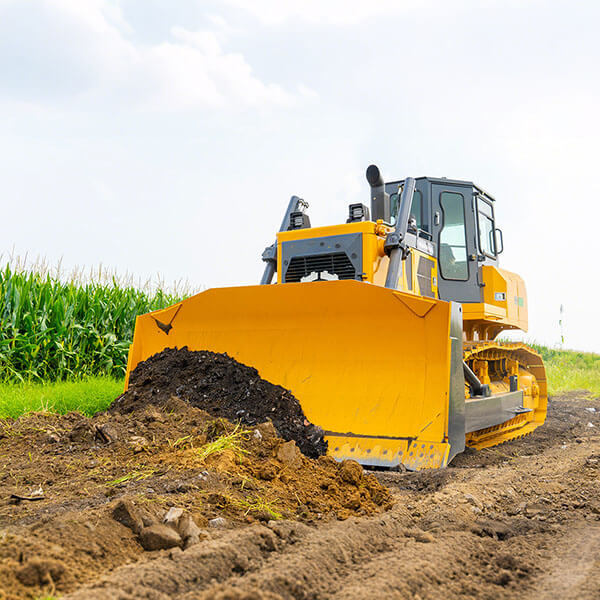

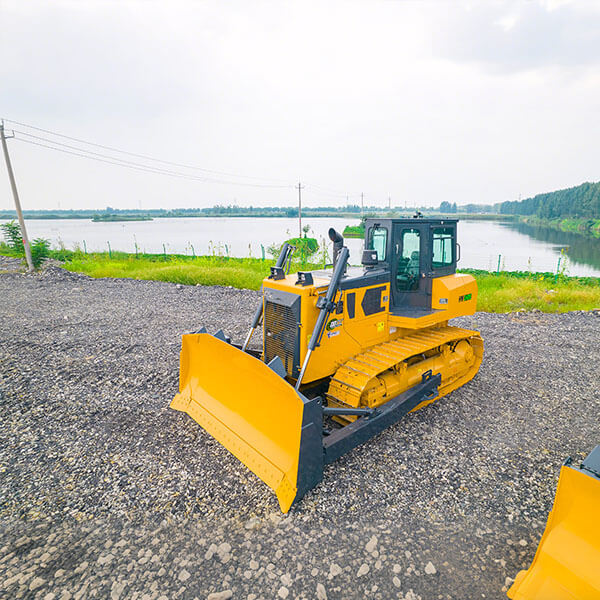

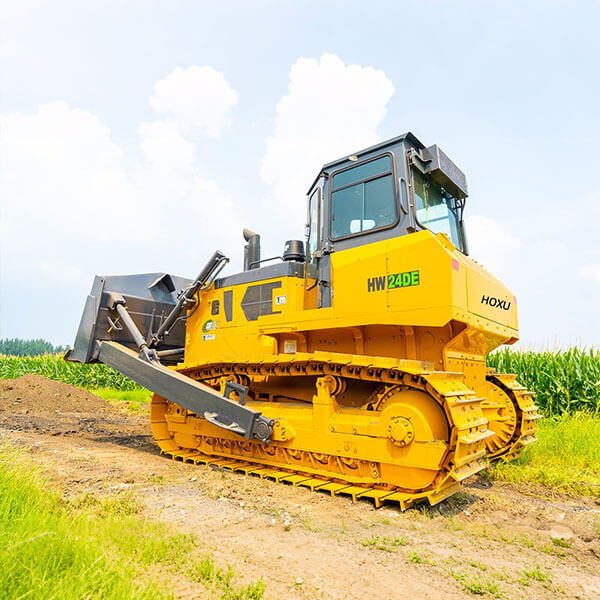

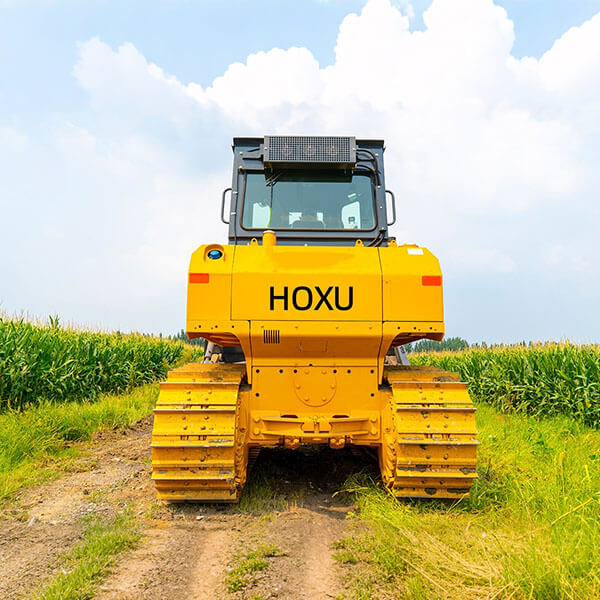

Crawler bulldozer HW24DE
Quick Details
Feature: Crawler Bulldozer Condition: New Application: Construction Certification: ISO, CE Model number: HW24DE Operating weight: 24300 kg Rated Power: 199/1900 kw/rpm Max. lifting height: 1210 mm Min. turn radius: 3120 mm Ground clearance: 480 mm Dimention: 5980*3642*3460 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | HW24DE |
| Overall length | mm | 5980 |
| Overall width | mm | 3642 |
| Overall height | mm | 3460 |
| Blade length*height | mm | 3642*1577 |
| Weight | ||
| Operating weight | kg | 24300 |
| Blade weight | kg | 3239 |
| Ripper weight | kg | 2900 |
| Power | ||
| Engine model | WEICHAI WP13G271E471 | |
| Engine rated power/speed | Kw/rps | 199/1900 |
| Travel | ||
| Forward speed | km/h | 0-11.8 |
| Reverse speed | km/h | 0-13.9 |
| Chassis system | ||
| Track center distance | mm | 2000 |
| Track shoe width | mm | 560 |
| Num. of track shoes(one side) | pcs | 41 |
| Chain track pitch | mm | 216 |
| Num. of rollers(one side) | pcs | 2 |
| Num. of supporting wheels (one side) | pcs | 6 |
| Ground clearance | mm | 480 |
| Main performance | ||
| Min. turning radius | mm | 3120 |
| Ground length | mm | 3050 |
| Ground pressure | Mpa | 0.062 |
| Blade type | Straight tilt blade(angle blade/semi-u blade) | |
| Blade Lifting height | mm | 1210 |
| Blade cutting depth | mm | 540 |
| Ripper type | Single tooth/three tooth | |
| Max. ripper depth | mm | 695 |
| Max. Lifting height | mm | 515 |
| Fuel tank capacity | L | 480 |
| Hydraulic tank capacity | L | 110 |
