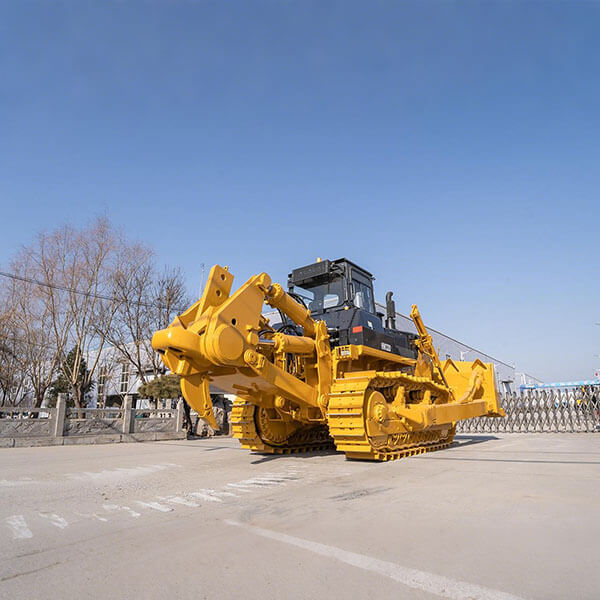

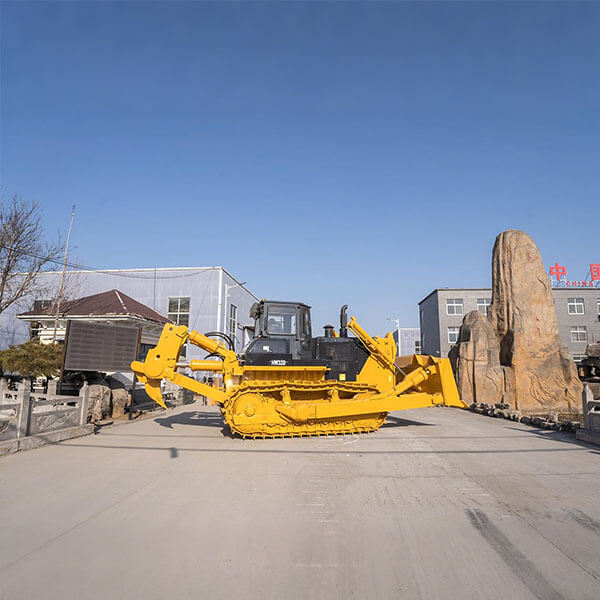

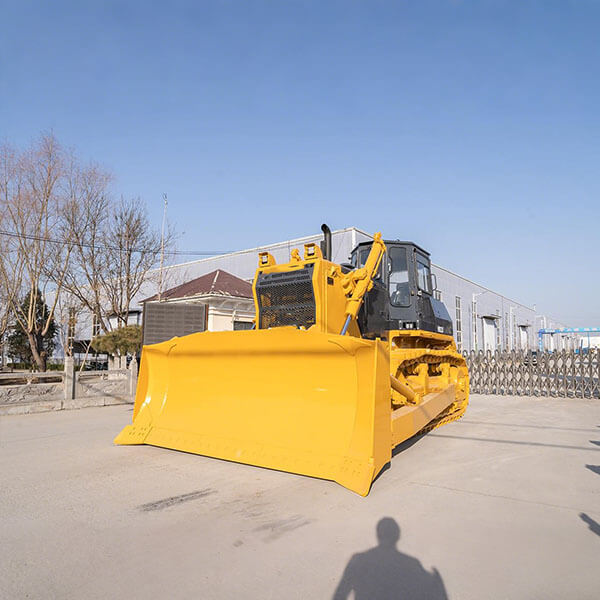

Crawler bulldozer HW32D
Quick Details
Feature: Crawler Bulldozer Condition: New Application: Construction Certification: ISO, CE Model number: HW32D Operating weight: 37200 kg Rated Power: 257/2000 kw/rpm Blade capacity: 10/6/11.9 m³ Max. lifting height: 1590 mm Min. turn radius: 3880 mm Dimention: 6680*4130*3688 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | HW32D |
| Overall length | mm | 6680 |
| Overall width | mm | 4130 |
| Overall height | mm | 3688 |
| Blade length*height | mm | 4130/5000/4030*1590/1140/1725 |
| Weight | ||
| Operating weight(excluding ripper) | kg | 37200 |
| Blade weight | kg | 4520/4855/4868 |
| Ripper weight | kg | 4260/4800 |
| Power | ||
| Engine model | COMMINS NTA855-C360 | |
| Engine rated power/speed | Kw/rps | 257/2000 |
| Travel | ||
| Forward speed | km/h | 0-11.5 |
| Reverse speed | km/h | 0-13.5 |
| Chassis system | ||
| Track center distance | mm | 2140 |
| Track shoe width | mm | 560 |
| Num. of track shoes(one side) | pcs | 41 |
| Chain track pitch | mm | 228.6 |
| Num. of rollers(one side) | pcs | 2 |
| Num. of supporting wheels (one side) | pcs | 7 |
| Ground clearance | mm | 500 |
| Main performance | ||
| Min. turning radius | mm | 3800 |
| Ground length | mm | 3150 |
| Ground pressure | Kpa | 0.105 |
| Blade type | Straight tilt blade/angle blade/semi-u blade | |
| Blade capacity | m³ | 10/6/11.9 |
| Blade Lifting height | mm | 1560/1703/1560 |
| Blade cutting depth | mm | 560/630/560 |
| Ripper tpye | Single tooth/three tooth | |
| Max. ripper depth | mm | 1250/842 |
| Max. Lifting height | mm | 955/883 |
| Fuel tank capacity | L | 640 |
| Hydraulic tank capacity | L | 164 |
