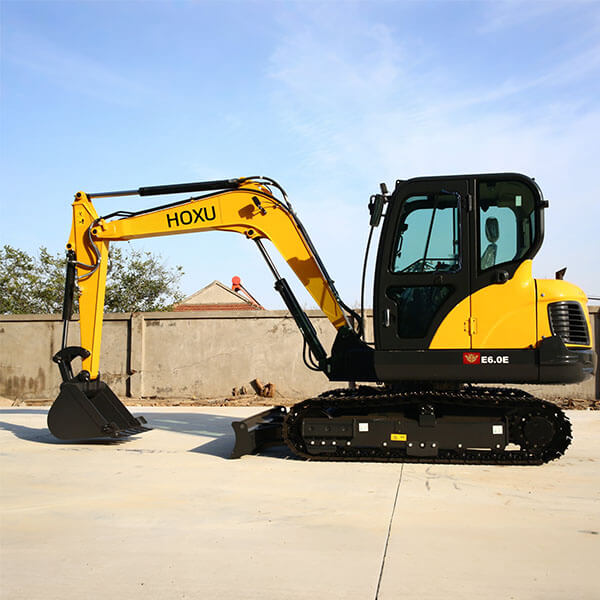

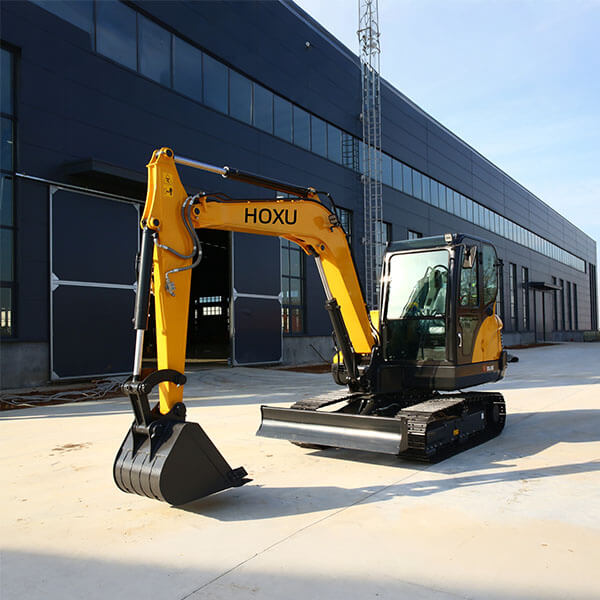

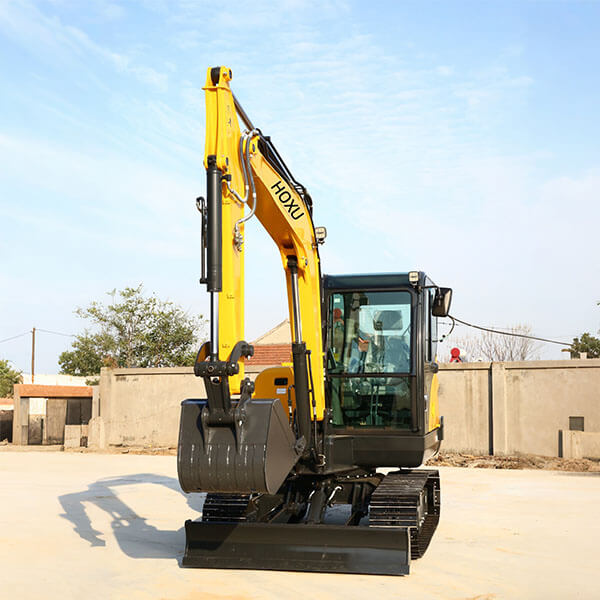

Crawler Excavator HXE6.0
Quick Details
Feature: Crawler Excavator Condition: New Certification: ISO, CE Application: Construction Model Number:HXE6.0 Rated Power:36.3 kw Bucket Capacity:0.22 m³ Bucket digging force:38 K.N Max. digging depth : 3808 mm Operating weight:5780 kg Dimension:5870*1860*2590 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HXE6.0 |
| Overall length | mm | 5870 |
| Overall width | mm | 1860 |
| Overall height(to top of cab) | mm | 2590 |
| Overall width of undercarriage | mm | 1860 |
| Shoe width | mm | 400 |
| Mchine upper width | mm | 1765 |
| Track length on the ground | mm | 2540 |
| Weight | ||
| Operating weight | kg | 5780 |
| Power | ||
| Engine manufacturer | YANMAR | |
| Engine model | 4TNV94L | |
| Engine rated power | kw | 36.3 |
| Fuel | Diesel | |
| Cooling type Cylinder Diameter*Piston | Water 4 44*110 | |
| Displacement | L | 3.064 |
| Travel | ||
| Travel max speed(High/Low) | km/h | 4.55/2.85 |
| Working range | ||
| Max. Digging height | mm | 5800 |
| Max.dumping height | mm | 4051 |
| Max.digging depth | mm | 3808 |
| Max.digging radium | mm | 6170 |
| Main technical parameters | ||
| Arm length | mm | 1600 |
| Boom length | mm | 3000 |
| Bucket capacity | m³ | 0.22 |
| Bucket digger force | K.N | 38 |
| Arm crowd force | K.N | 28 |
| Wheelbase of crawler | mm | 1990 |
| Ground clearance | mm | 260 |
| Ground clearance of conterweight | mm | 685 |
| Num. of track rollers | pcs | 2*10 |
| Min. turning radius | mm | 2365 |
| Min. Turning radius of tail | mm | 1650 |
| Fuel tank capacity | L | 115 |
| Coolant capacity | l | 10 |
| Engine oil capacity | L | 10.5 |
| Hydraulic tank capacity | L | 62 |
