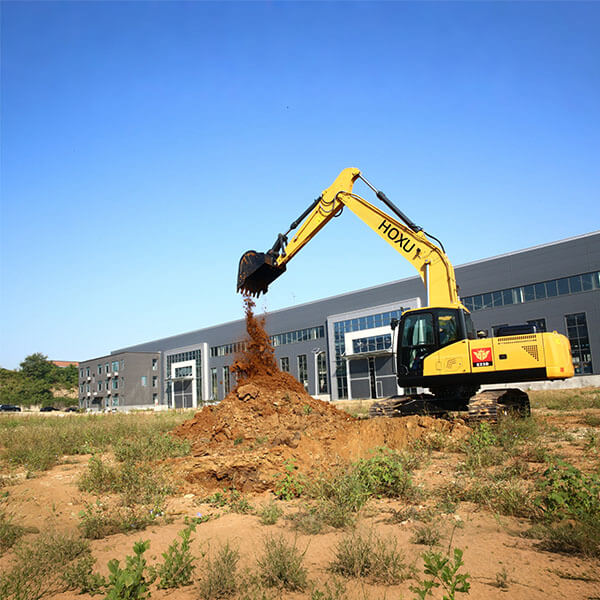

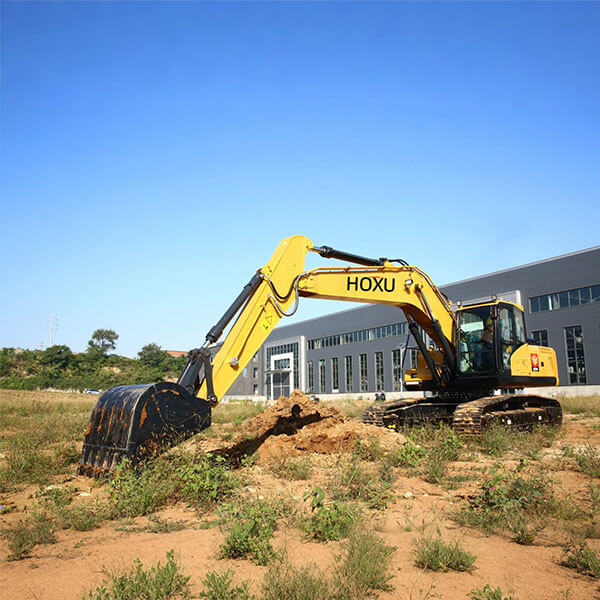

Crawler Excavator SHM-E23D
Quick Details
Feature: Crawler Excavator Condition: New Application: Construction Certification: ISO, CE Model Number:SHM-E23D Rated Power:133/2200 kw/rpm Bucket Capacity:1.1 m³ Bucket digging force:148 K.N Max. digging depth : 6520 mm Operating weight:22560 kg Dimension:9615*2980*3045 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | SHM-E23D |
| Overall length | mm | 9615 |
| Overall width | mm | 2980 |
| Overall height(to top of cab) | mm | 3045 |
| Overall height（to top of arm） | mm | 3075 |
| Overall width of undercarriage | mm | 2980 |
| Shoe width | mm | 600 |
| Mchine upper width | mm | 2725 |
| Track length on the ground | mm | 3655 |
| Weight | ||
| Operating weight | kg | 22560 |
| Power | ||
| Engine manufacturer | CUMMINS | |
| Engine rated power/speed | kw/rpm | 133/2200 |
| Emission standard | 国II | |
| Travel | ||
| Travel max speed(High/Low) | km/h | 4.7/3.2 |
| Working range | ||
| Max. Digging height | mm | 10080 |
| Max.dumping height | mm | 7360 |
| Max.digging depth | mm | 6520 |
| Max.digging radium | mm | 9690 |
| Main technical parameters | ||
| Arm length | mm | 2925 |
| Boom length | mm | 5700 |
| Bucket capacity | m³ | 1.1 |
| Bucket digger force | T | 15.0 |
| Arm crowd force | T | 11.0 |
| Max. traction | kn | 220 |
| Wheelbase of crawler | mm | 3655 |
| Track gauge | mm | 2380 |
| Ground clearance | mm | 468 |
| Ground clearance of conterweight | mm | 1065 |
| Ground pressure | kma | 46.7 |
| Num. of track rollers | pcs | 2*7 |
| Num. of track shoe | pcs | 2*49 |
| Swing speed | r/min | 11.5 |
| Gradeability | %/° | 70/30 |
| Min. Turning radius of tail | mm | 2925 |
| Fuel tank capacity | L | 350 |
| Coolant capacity | l | 28 |
| Engine oil capacity | L | 21.5 |
| Hydraulic tank capacity/Hydraulic system capacity | L | 230/400 |
