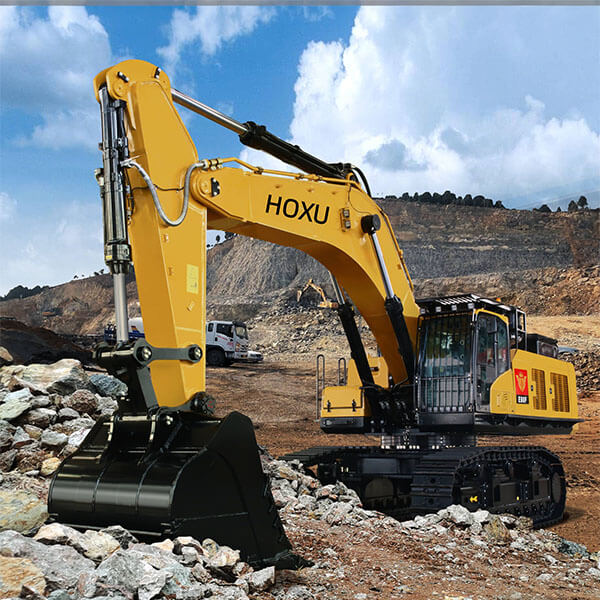

Crawler Excavator SHM-E80F
Quick Details
Feature: Crawler Excavator Condition: New Application: Construction Certification: ISO, CE Model Number:SHM-E80F Rated Power:563/2100 kw/rpm Bucket Capacity:5.2 m³ Bucket digging force:390 K.N Max. digging depth : 6660 mm Operating weight:76000 kg Dimension:12600*4420*4900 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | SHM-E80F |
| Overall length | mm | 12600 |
| Overall width | mm | 4420 |
| Overall height(to top of cab) | mm | 3770 |
| Overall height（to top of arm） | mm | 4900 |
| Overall width of undercarriage | mm | 4060/3400 |
| Shoe width | mm | 650 |
| Mchine upper width | mm | 3505 |
| Track length on the ground | mm | 4700 |
| Weight | ||
| Operating weight | kg | 76000 |
| Power | ||
| Engine manufacturer | CUMMINS | |
| Engine rated power/speed | kw/rpm | 563/2100 |
| Emission standard | 国III | |
| Travel | ||
| Travel max speed(High/Low) | km/h | 4.1/2.8 |
| Working range | ||
| Max. digging height | mm | 11830 |
| Max. dumping height | mm | 7600 |
| Max.digging depth | mm | 6660 |
| Max.digging radium | mm | 11690 |
| Main technical parameters | ||
| Arm length | mm | 2570 |
| Boom length | mm | 7000 |
| Bucket capacity | m³ | 5.2 |
| Bucket digger force | K.N | 390 |
| Arm crowd force | K.N | 338 |
| Max. traction | kn | 575 |
| Wheelbase of crawler | mm | 4690 |
| Track gauge | mm | 3410/2750 |
| Ground clearance | mm | 850 |
| Ground clearance of conterweight | mm | 1610 |
| Ground pressure | kma | 112 |
| Num. of track rollers | pcs | 2*8 |
| Num. of track shoe | pcs | 2*48 |
| Swing speed | r/min | 7.0 |
| Gradeability | %/° | 70/35 |
| Min. Turning radius of tail | mm | 4150 |
| Fuel tank capacity | L | 925 |
| Coolant capacity | l | 75 |
| Engine oil capacity | L | 52 |
| Hydraulic tank capacity/Hydraulic system capacity | L | 600 |
