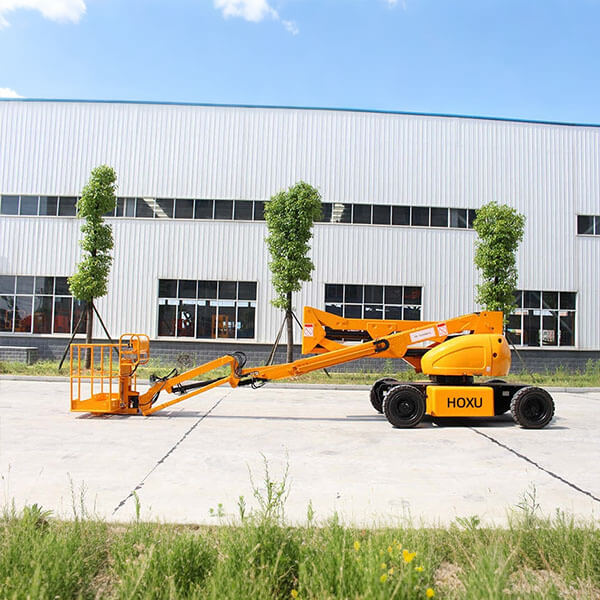

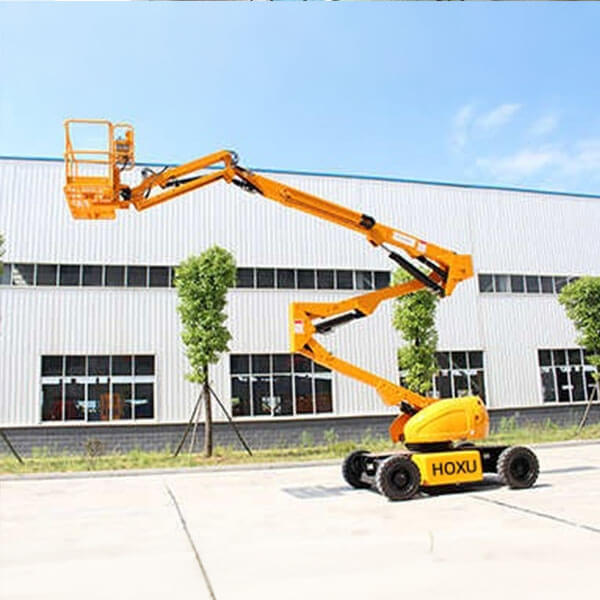

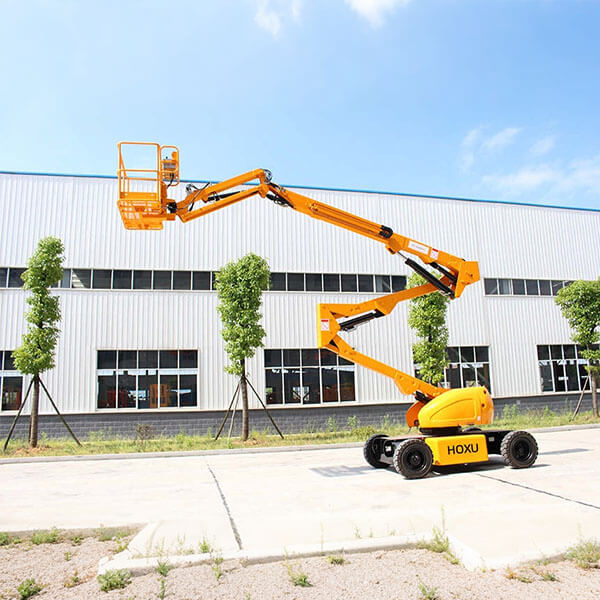

Electric artculated boom aerial work platform HX14D
Quick Details
Feature: Electric artculated boom Condition: New Application: Construction Certification: ISO, CE Model Number: HX14D Overall weight: 6270 kg Rated load capacity: 230kg Max. platform height: 14000mm Dimension: 6240*1750*2000 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX14D |
| Overall length | mm | 6240 |
| Overall width | mm | 1750 |
| Overall height | mm | 2000 |
| Platform dimension | mm | 1530*760*1100 |
| Drive wheel | mm | 28*9-15 |
| Weight | ||
| Overall weight | kg | 6270 |
| Rated load capacity | kg | 230 |
| Power | ||
| Maintenance-free battery | v/ah | 48/420 |
| Drive motor power | kw | 6.5*2 |
| Control voltage | kw | 24 |
| Charger | v/a | 48/40 |
| Travel | ||
| Travel speed(platform lowered) | km/h | 5 |
| Lifting speed(platform raised) | mm/s | 0.8 |
| Main performance | ||
| Max.platform height | mm | 14000 |
| Max.working height | mm | 16000 |
| Max.horizontal reach | mm | 8100 |
| Max. Overreach height | mm | 7600 |
| Ground clearance | mm | 200 |
| Gradeability | % | 30 |
| Min. Turning radius | mm | 4500 |
| wheelbase | mm | 2000 |
| Tail swing | mm | 0 |
| Turret rotation | ° | 360(continuous) |
| Platform rotation | ° | 180 |
| Hydraulic tank capacity | L | 70 |
