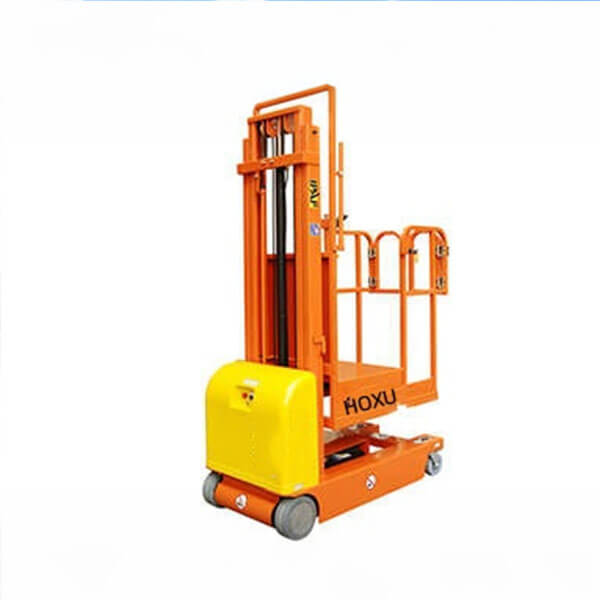

Full-electric material picking aerial work platform HX31006
Quick Details
Feature: Full-electric material picking Condition: New Application: Construction/Warehouse Certification: ISO, CE Model Number: HX31006 Overall weight: 430-680 kg Rated load capacity: 300kg Max. platform height: 2700-4500mm Dimension: 1530*700*1830 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX31006 | HX31007 | HX31008 | HX31009 |
| Overall length | mm | 1530 | 1530 | 1620 | 1620 |
| Overall width | mm | 700 | 700 | 700 | 700 |
| Overall height | mm | 1830 | 2130 | 1840 | 2000 |
| Platform size | mm | 600*640 | 600*640 | 600*640 | 600*640 |
| Drive wheel size | mm | 230*80 | 230*80 | 230*80 | 230*80 |
| Caster wheel size | inch | 6 | 6 | 6 | 6 |
| Weight | |||||
| Overall weight | kg | 430 | 450 | 660 | 680 |
| Rated load capacity | kg | 300 | 300 | 300 | 300 |
| Power | |||||
| Maintenance-free battery | v/ah | 2*12/150 | 2*12/150 | 2*12/150 | 2*12/150 |
| Drive motor power | kw | 2*24/0.4 | 2*24/0.4 | 2*24/0.4 | 2*24/0.4 |
| Lifting motor power | kw | 24/1.6 | 24/1.6 | 24/1.6 | 24/1.6 |
| Charger | v/a | 24/15 | 24/15 | 24/15 | 24/15 |
| Travel | |||||
| Travel speed(platform lowered) | km/h | 4 | 4 | 4 | 4 |
| Lifting speed(platform raised) | mm/s | 1.6 | 1.6 | 1.6 | 1.6 |
| Main performance | |||||
| Max.platform height | mm | 2700 | 3300 | 4000 | 4500 |
| Max.working height | mm | 4120 | 5000 | 5400 | 6000 |
| Ground clearance of base | mm | 40 | 40 | 40 | 40 |
| Gradeability | % | 15-20 | 15-20 | 15-20 | 15-20 |
| Min. Turning radius | mm | 1600 | 1600 | 1600 | 1600 |
