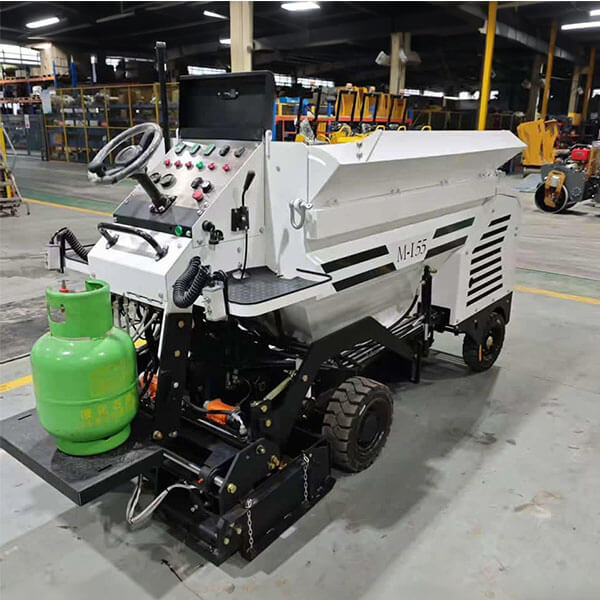

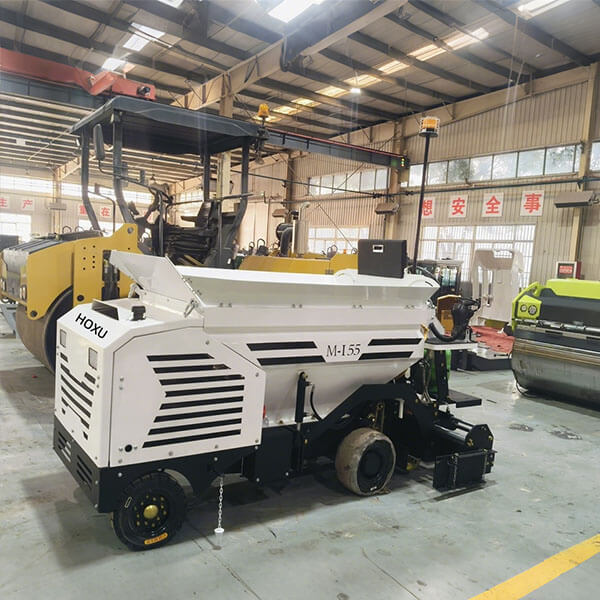

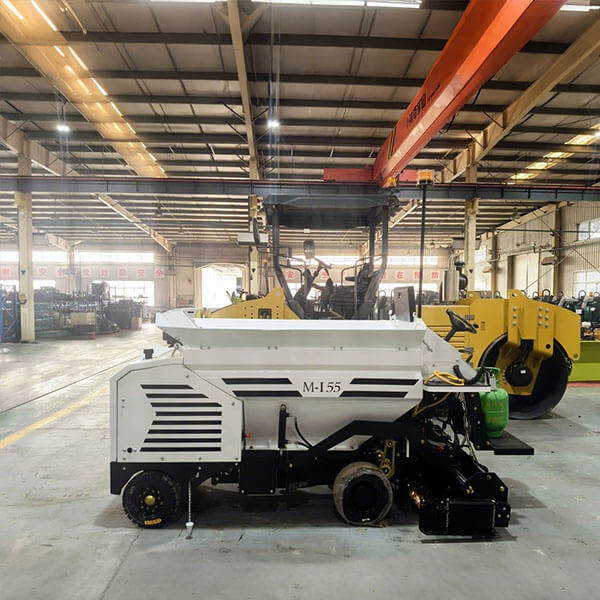

Mini asphalt paver M-155
Quick Details
Feature: Asphalt paver Condition: New Application: Construction Certification: ISO, CE Model Number:M-155 Operating weight: 1450 kg Rated power: 14.9/3600 kw/rpm Max. paving speed: 25 m/min Standard paving width: 900-1450 mm Max. paving capacity: 35 T/h Dimension:3015*1220*1495 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | M-155 |
| Overall length | mm | 3015 |
| Overall width | mm | 1220 |
| Overall height | mm | 1495 |
| Transmission length | mm | 1090 |
| Hopper length | mm | 1650 |
| Operator platform height | mm | 475 |
| Internal turning radius | mm | 950 |
| Weight | ||
| Operating weight | kg | 1450 |
| Max. Operating weight | kg | 1520 |
| Power and transmission system | ||
| Engine model | KUBOTA D72 | |
| Emission standards | Euro 5 EPA Diesel in-line four-stroke Water cooling | |
| Engine cooling system | Vertical water-cooled | |
| Engine rated power/speed | Kw/rpm | 14.9/3600 |
| Type of landing gear | Wheeled | |
| Wheel specifications | mm | 400*127 |
| Direction wheel specifications | mm | 370*100 |
| Transmission type | Fluid statics | |
| Turning type | Hydraulic | |
| Material supply and transportation | ||
| Hopper volume | m³ | 0.7 |
| Type of conveyor belt | Reversible type(Forward and reverse rotation) | |
| Spiral drill type | Automatic | |
| Working performance | ||
| Max. theoretical paving capacity | T/h | 35 |
| Cushion thickness | mm | 5-100 |
| Transmission speed | Km/h | 0-3.4 |
| Max.paving speed | m/min | 25 |
| Standard paving width | mm | 900-1450 |
| Max. paving width(extension) | mm | 1450 |
| Min. paving width(extension) | mm | 300 |
| Ironing board tpye | Standrad heating/optional vibration | |
| Fuel capacity | L | 5.5 |
| Hydraulic oil capacity | L | 18 |
| Series piston pump displacement | ml/r | 21 |
| Rated pressure | mpa | 17 |
| Max. pressure | mpa | 26 |
| Gear pump pressure | mpa | 21 |
