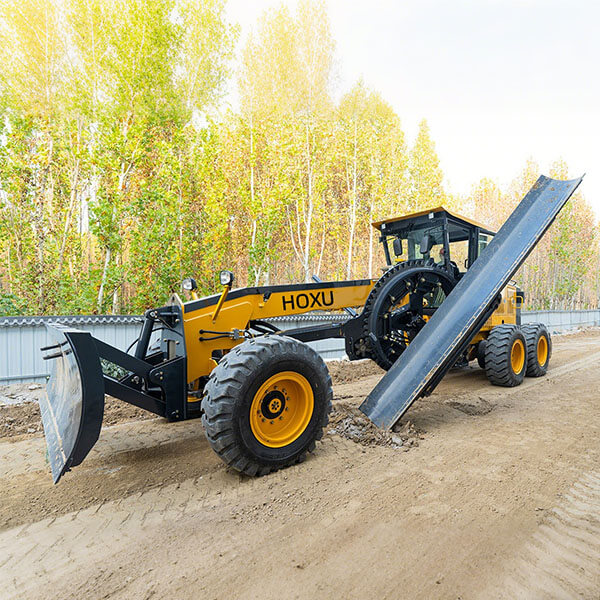

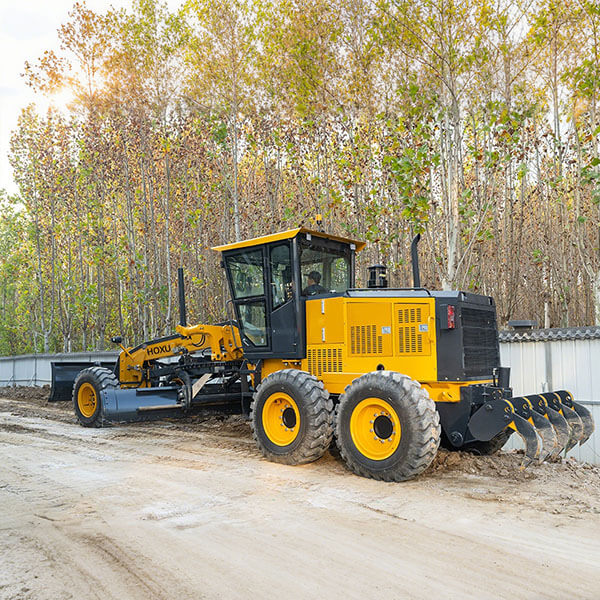

Motor Grader HW22G
Quick Details
Feature: Motor Grader Condition: New Application: Construction Certification: ISO, CE Model Number: HW22G Operating weight: 1700 kg Rated power: 160 kw Max.traction force: 90 KN Max. torque: 980 N.m Wheelbase: 6260 mm Dimension: 9430*2600*3400 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | HW22G |
| Overall length | mm | 9430 |
| Overall length(with front blade) | mm | 10310 |
| Overall length(with rear ripper) | mm | 9920 |
| Overall length(with front blade+rear ripper) | mm | 10630 |
| Overall width | mm | 2600 |
| Overall height | mm | 3400 |
| Weight | ||
| Operation weight | kg | 1700 |
| Power | ||
| Engine model | COMMINS 6CTAA8.3-C215 | |
| Engine type | 4-stroke,direct inject water-cooled,turbocharged
intercooler |
|
| Engine rated power | Kw/hp | 160 |
| Bore*stroke | mm | 114*135 |
| Max.traction force | kn | 90 |
| Max.torque | N.m | 980 |
| Displacement | L | 8.3 |
| Main performance | ||
| Steering system type | Full hydraulic steering | |
| Front wheel steering angle | ° | ±45 |
| Chassic steering angle | ° | ±23 |
| Min. Turning radius | mm | 82000 |
| Blade rotation angle | ° | 360 |
| Blade length | mm | 3660/3965/4270 |
| Blade height | mm | 635 |
| Blade insertion depth | mm | 500 |
| Blade lifting height | mm | 440 |
| Max. Side extension distance | mm | 1900/1950 |
| Wheelbase | mm | 6260 |
| Rear axle distance | mm | 1550 |
| Track width | mm | 2155 |
| Min. Ground clearance | mm | 430 |
