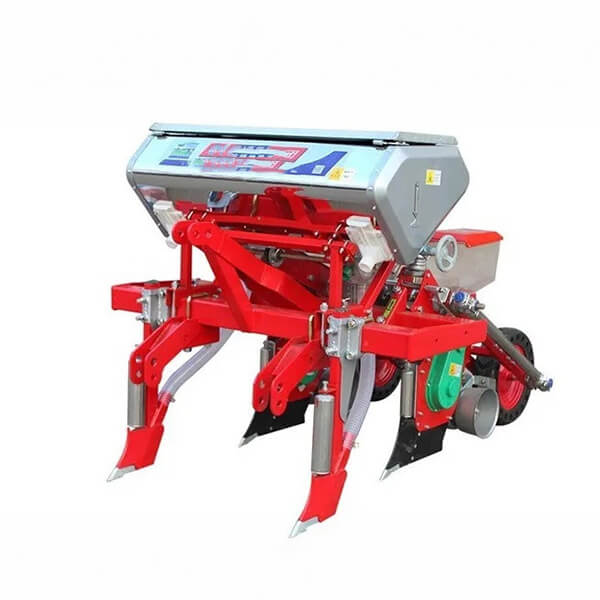

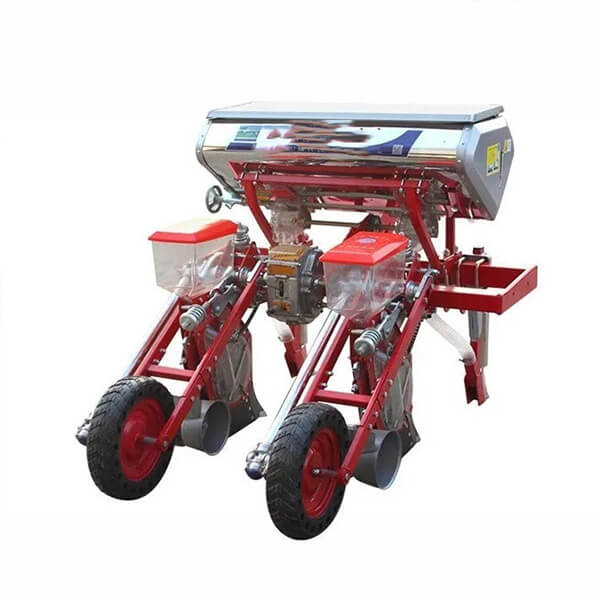

No-till precision corn fertilizing planter HX002
Quick Details
Feature: No-till precision corn fertilizing planter Condition: New Application: Agriculture Certification: ISO, CE Model Number:HX002 Matched tractor power:18-33 hp Seeding/fertilizing rows: 2 rows Row spacing: 220mm Working width: 1060-1400mm Working efficiency: 0.2-0.3ha/h Dimension: 1700*1250*1180 mm Place of origin: shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX002 | HX003 | HX004 | HX004C | HX005C | HX006C |
| Overall length | mm | 1700 | 1700 | 1710 | 2050 | 1760 | 1760 |
| Overall width | mm | 1250 | 1700 | 2345 | 2320 | 2715 | 3320 |
| Overall height | mm | 1180 | 1180 | 1210 | 1360 | 1275 | 1275 |
| Travel | |||||||
| Working speed | km | 2-5 | 2-5 | 2-5 | 2-5 | 4-11 | 4-11 |
| Main performance | |||||||
| Matched tractor power | Hp | 18-33 | 18-33 | 22-55 | 29-75 | 36-110 | 44-110 |
| Seeding/fertilizing rows | row | 2 | 3 | 4 | 4 | 5 | 6 |
| Row spacing | mm | 530-700 | 530-700 | 450-680 | 600 | 500-620 | 500-620 |
| Working width | mm | 1060-1400 | 1590-2100 | 1800-2720 | / | / | / |
| Working efficiency | ha/h | 0.2-0.3 | 0.3-0.45 | 0.4-0.6 | 0.38-0.96 | / | / |
| Structural type | / | / | / | Mechanical suspended | Mechanical suspended | Mechanical suspended | |
| Applicition | This machine works in conjunction with tractors, mainly used for precision single-grain sowing of corn on unplowed or plowed land. It can apply granular fertilizer in bands and complete ditching, fertilizing, seeding, soil-covering and compacting in one pass.
Equipped with ground-following function, it floats with the ground and maintains stable sowing depth even on uneven fields. Plant spacing is adjusted via a single gearbox, offering 16 spacing options. The row-to-row plant spacing of all rows can be changed by adjusting the gearbox transmission ratio. A shear pin is installed on the seeding assembly to effectively protect it from damage under overload. Two hitch points are designed on the frame to fit tractors of different horsepower. The frame adopts an assembled structure with heavy-duty materials for high strength. This model is available in 2-6 row configurations. |
||||||
