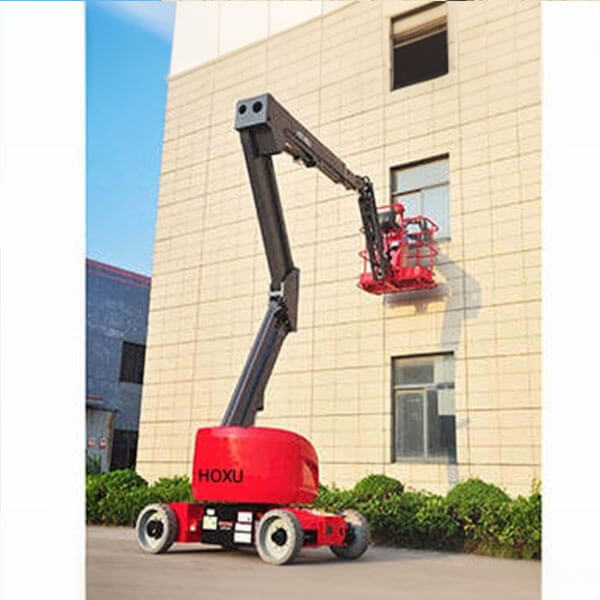

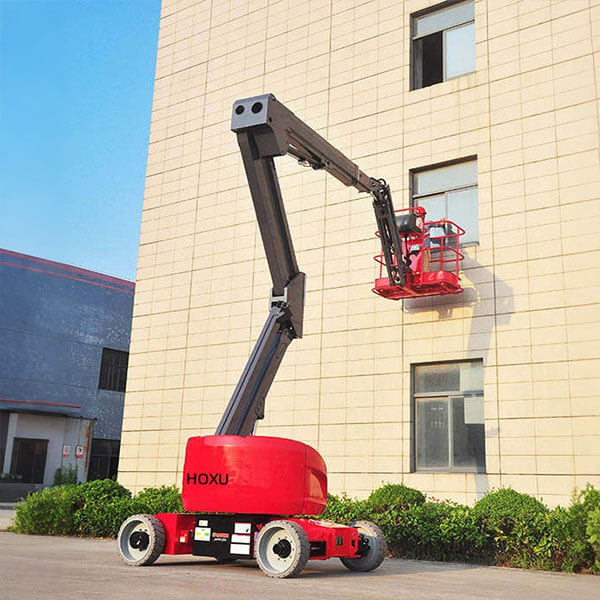

Self-propelled artculated boom aerial work platform HX140JDC
Quick Details
Feature: Self-propelled artculated boom Condition: New Application: Construction Certification: ISO, CE Model Number: HX140JDC Overall weight: 5800 kg Rated load capacity: 230kg Max. platform height: 12000mm Dimension: 5570*1750*2000 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX140JDC |
| Overall length | mm | 5570 |
| Overall width | mm | 1750 |
| Overall height | mm | 2000 |
| Platform dimension | mm | 1500*760*1100 |
| Tyre size | mm | 600*190 |
| Weight | ||
| Overall weight | kg | 5800 |
| Rated load capacity | kg | 230 |
| Power | ||
| Power source | v | DC48V |
| Travel | ||
| Max. travel speed(folded) | km/h | 3.7 |
| Max. travel speed(extended) | mm/s | 1.0 |
| Main performance | ||
| Max.platform height | mm | 12000 |
| Max.working height | mm | 14000 |
| Max.horizontal reach | mm | 6880 |
| Max. Overreach height | mm | 6330 |
| Ground clearance | mm | 140 |
| Gradeability | % | 30 |
| Min. turning radius(outside) | mm | 3500 |
| Min.turning radius(inside) | mm | 2300 |
| wheelbase | mm | 2000 |
| Tail swing | mm | 0 |
| Turret rotation angle | ° | 360(non-continuous) |
| Platform basket rotation angle | ° | 180 |
| Jib swing angle | ° | 140 |
| Platform leveling | Hydraulic leveling | |
| Num. of drive wheels | pcs | 2 |
| Num. Of steering wheels | pcs | 2 |
| Control mode | Electric-hydraulic proportional control | |
| Max.lateral force | N | 400 |
| Max. Tilt angle | ° | 3 |
| Max.allowable wind speed | m/s | 12.5 |
| Hydraulic tank capacity | L | 35 |
