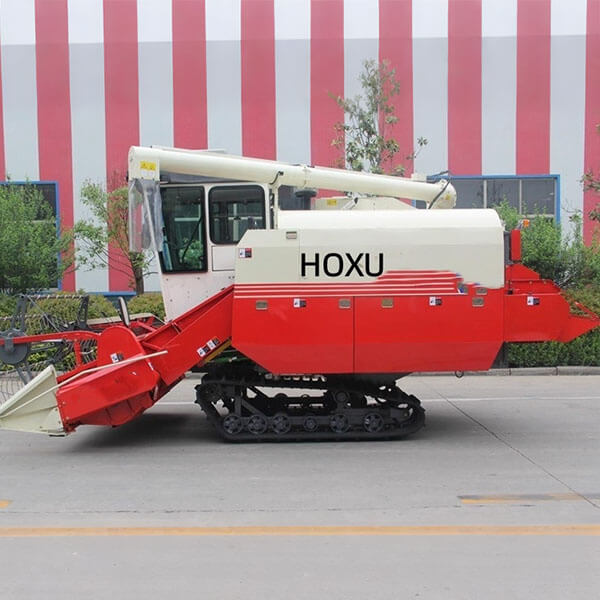

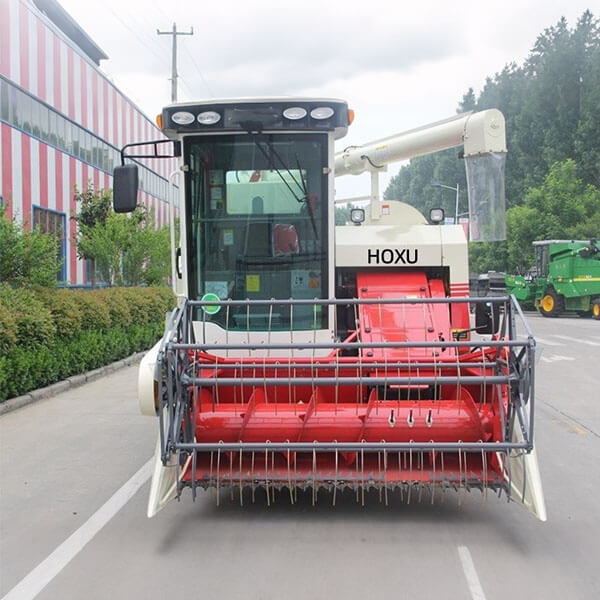

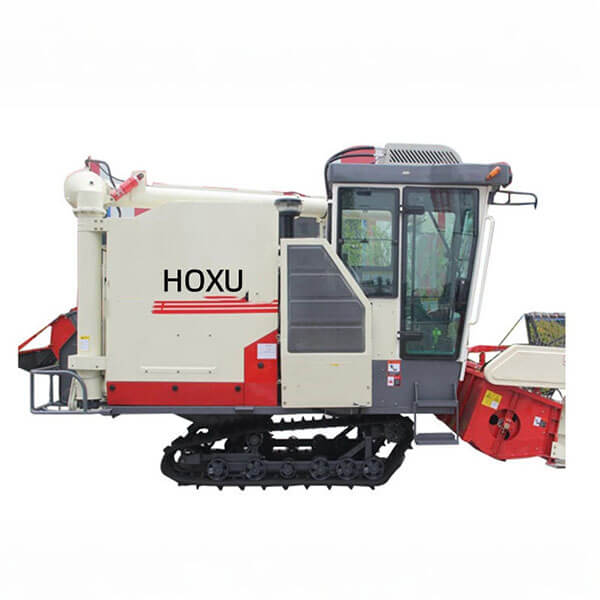

Self-propelled crawler rice combine harvester HX6A
Quick Details
Feature: Self-propelled crawler rice combine harvester Condition: New Application: Agriculture Certification: ISO, CE Model Number:HX6A Total weight: 3935kg Rated power: 80kw Num.of operating lines: 4 rows Working breadth:2370 mm Productivity:4000-7000 m³/h Dimension:7600*2800*3490 mm Place of origin: shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX6A |
| Overall length | mm | 5860 |
| Overall width | mm | 2620 |
| Overall height | mm | 2940 |
| Structural | ||
| Structural type | Self-propelled crawler full feeding | |
| Weight | ||
| Overall weight | kg | 3935 |
| Header | ||
| Header type | Horizontal type | |
| Cutter type | National standard type II | |
| Auger type | Spiral tooth type | |
| Working width | mm | 2300 |
| Power | ||
| Engine model | YC4DK108-T300 | |
| Engine structure | In-line, water-cooled ,vertical ,four-stroke | |
| Engine cylinders | pcs | 4 |
| Rated power | kw | 80 |
| Rated speed | R/min | 2600 |
| Reel | ||
| Reel type | Eccentric spring tooth type | |
| Reel diameter | mm | 900 |
| Num. of reel boards | pcs | 5 |
| Threshing mechanism | ||
| Threshing mechanism layout | Longitudinal axial flow | |
| Num. Of Threshing drums | pcs | 1 |
| Main Threshing drum type | Longitudinal axial flow rod-tooth type | |
| Outline dimensions of main threshing drum(outer diameter*length) | mm | 620*2200 |
| Concave plate screen | ||
| Concave plate screen type | Raster format | |
| Fan | ||
| Fan type | Centrifugal | |
| Fan diameter | mm | 400 |
| Num. of fans | pcs | 1 |
| Cab | ||
| Cab type | Ordinary | |
| Track | ||
| Pitch*Number of sections*Width | mm | 90*sections 53*500 |
| Gauge | mm | 1250 |
| Track ground pressure | kpa | ≤24 |
| Transmission | ||
| Transmission mechanism type | Mechanical gearbox+hydraulic continuously variable transmission | |
| Brake | ||
| Brake type | Wet friction plate type | |
| Transaxle | ||
| Transaxle type | Hydrostatic drive | |
| Main performance | ||
| Feeding amount | Kg/s | 6 |
| Working gear | I, II | |
| Working speed | Km/h | 0.9.-6.5 |
| Mini.ground clearance | mm | 300 |
| Productivity | ㎡/h | 1900-10000 |
| Stem chopper type | Rotating blade type | |
| Grain volume | m³ | 1.5 |
| Grain unloading method | Multi-directional grain unloading | |
| Fuel comsumption per unit workload | Kg/hm2 | ≤35 |
| Recuperator type | Plate tooth fan type | |
| Harvestable crops | Rice,wheat, corn,millet,oilseed rape,soybean and other crops by using different harvest gears to achieve an all-in-one machinery. | |
