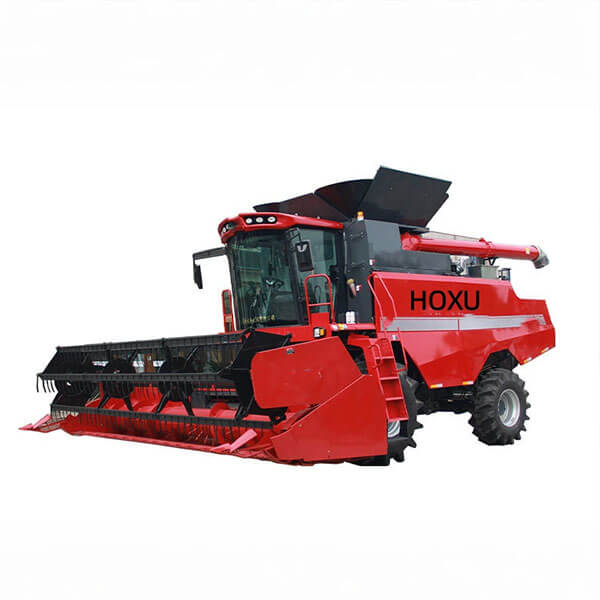

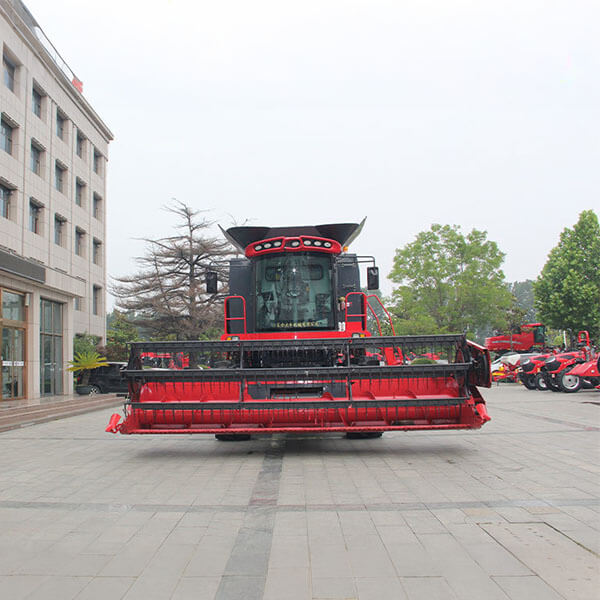

Self-propelled grain combine harvester HX13
Quick Details
Feature: Self-propelled grain combine harvester Condition: New Application: Agriculture Certification: ISO, CE Model Number:HX13 Total weight:12500kg Rated power: 191 kw Feeding amount: 13kg/s Working speed:1.5-6.0km/h Productivity:6000-15000 m³/h Dimension:9450*5800*3850 mm Place of origin: shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX13 |
| Overall length | mm | 9450 |
| Overall width | mm | 5800 |
| Overall height | mm | 3850 |
| Structural | ||
| Structural type | Self-propelled wheel full feeding | |
| Weight | ||
| Overall weight | kg | 12500 |
| Header | ||
| Header type | Horizontal type | |
| Cutter type | National standard type II | |
| Auger type | Spiral tooth type | |
| Working width | mm | 5400 |
| Power | ||
| Engine model | YCA07P260-T400 | |
| Emission standard | National IV | |
| Engine structure | In-line, water-cooled ,direct injection ,four-stroke | |
| Engine cylinders | pcs | 6 |
| Rated power | kw | 191 |
| Rated speed | R/min | 2200 |
| Reel | ||
| Reel type | Eccentric spring tooth type | |
| Reel diameter | mm | 1130 |
| Num. of reel boards | pcs | 6 |
| Threshing mechanism | ||
| Threshing mechanism layout | Longitudinal axial flow | |
| Num. Of Threshing drums | pcs | 1 |
| Main Threshing drum type | Longitudinal axial flow rod-tooth type | |
| Outline dimensions of main threshing drum(outer diameter*length) | mm | 610*2995 |
| Concave plate screen | ||
| Concave plate screen type | Raster format | |
| Removal | ||
| Removal method | The roller takes off the second time | |
| Fan | ||
| Fan type | Through-flow type | |
| Fan diameter | mm | 296 |
| Num. of fans | pcs | 1 |
| Cab | ||
| Cab type | Ordinary | |
| Drive | ||
| Drive mode | Four wheel drive | |
| Brake type | Disc(front) | |
| Drive type | Front:hydraulic drive/Rear:mechanical drive | |
| Gearbox | ||
| Gearbox gear | Fourth gear | |
| Transmission | ||
| Transmission mechanism type | Mechanical gearbox+hydraulic continuously variable transmission | |
| Main performance | ||
| Feeding amount | Kg/s | 13 |
| Working gear | Three levels of homework | |
| Working speed | Km/h | 1.5-6.0 |
| Mini clearance | mm | 285 |
| Working speed | Km/h | 2-6 |
| Productivity | ㎡/h | 6000-15000 |
| Stem chopper type | Rotating blade type | |
| Grain volume | m³ | 10 |
| Grain unloading method | Mechanical automatic grain unloading | |
| Grain unloading height | mm | 4750 |
| Fuel comsumption per unit workload | Kg/hm2 | ≤35 |
| Min. Ground clearance | mm | 430 |
| Driving wheel track | mm | 2600 |
| Guide wheel track | mm | 2638 |
| Wheelbase | mm | 3305 |
| Drive wheel tire specifications | 19.5L-24 | |
| Guide wheel tire specifications | 28L-26 | |

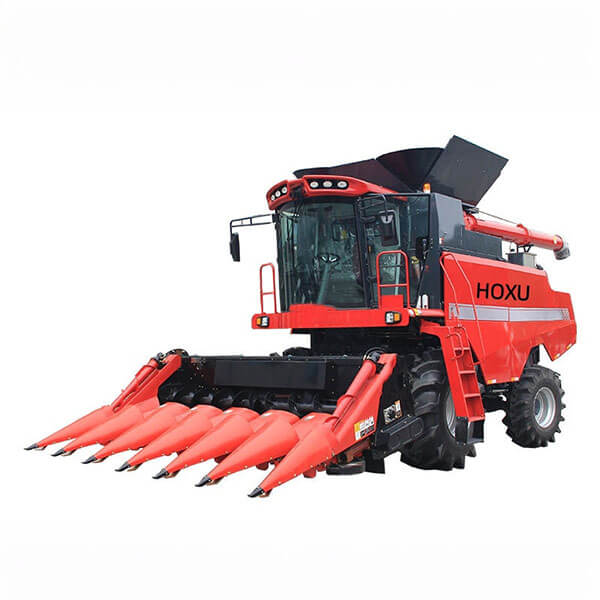

| Harvestable crops | Soybeans, wheat and millet, the corn can be replaced to harvest 6 rows of corn kemels | |
