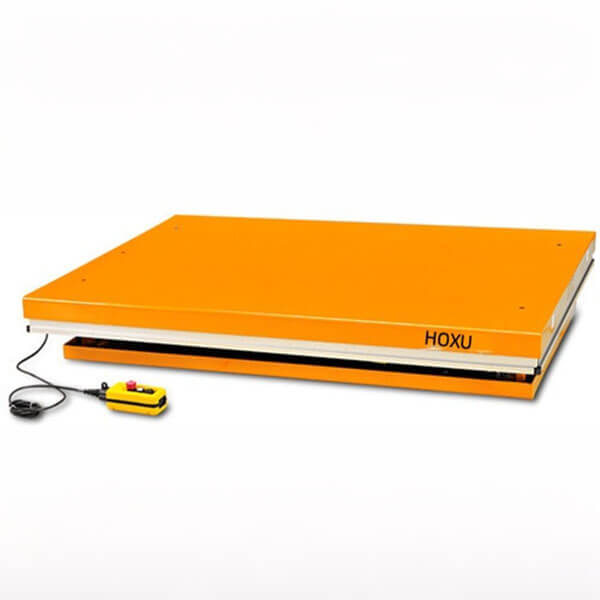

Single scissor fixed lift platform HX43071
Quick Details
Feature: Single scissor fixed lift platform Condition: New Application: Workshop/warehouse Certification: ISO, CE Model Number: HX43071 Overall weight:180-450 kg Rated load capacity: 150-300 kg Max.platform height: 990-1050 mm Platform dimension: 1300*820 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX43071 | HX43072 | HX43073 | HX43074 | HX43075 | HX43076 | HX43077 |
| Platform dimension | mm | 1300*820 | 1600*1000 | 1700*850 | 1300*850 | 1600*1000 | 1700*1200 | 2000*1200 |
| Base dimension | mm | 1240*640 | 1240*640 | 1580*640 | 1300*640 | 1220*785 | 1220*785 | 1600*785 |
| Packaging dimension | mm | 1310*820*210 | 1610*1010*210 | 1710*850*210 | 1310*860*240 | 1610*1010*240 | 1710*1210*250 | 2010*1210*20 |
| Weight | ||||||||
| Overall weight | kg | 180 | 200 | 220 | 260 | 290 | 410 | 450 |
| Rated load capacity | kg | 1000 | 1000 | 1000 | 2000 | 2000 | 4000 | 4000 |
| Power | ||||||||
| Power supply | v/hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Main performance | ||||||||
| Type | Single scissor | Single scissor | Single scissor | Single scissor | Double scissor | Double scissor | Double scissor | |
| Min. Platform height | mm | 205 | 205 | 240 | 230 | 230 | 250 | 250 |
| Max.platform height | mm | 990 | 990 | 1300 | 1000 | 1000 | 1050 | 1050 |
| Lifting time | s | 20-25 | 20-25 | 30-35 | 20-25 | 20-25 | 30-40 | 30-40 |
