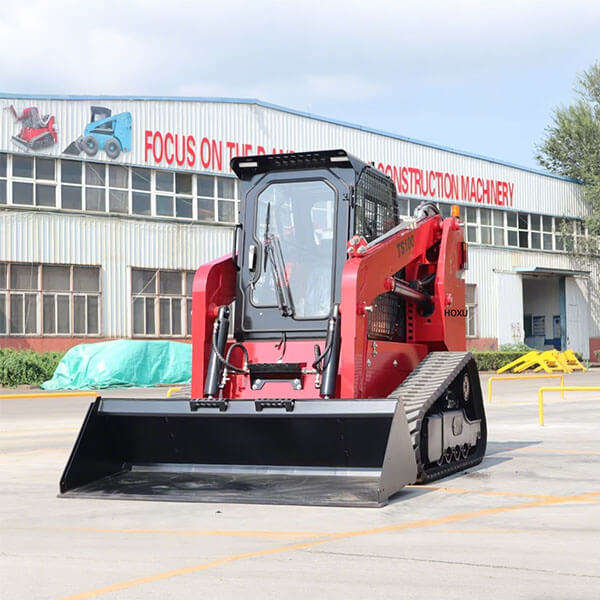

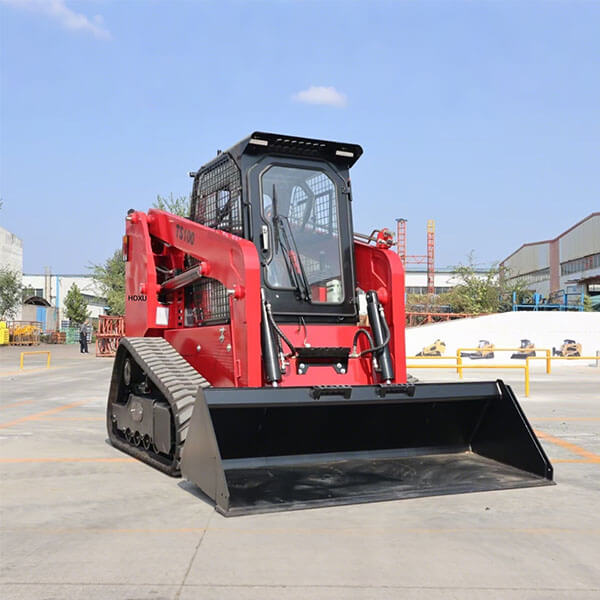

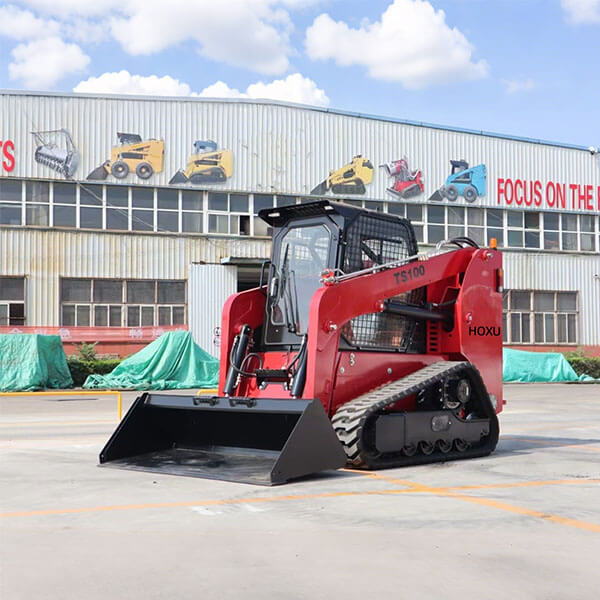

Skid Steer Loader TS100
Quick Details
Feature: Skid Steer Loader Condition: New Application: Construction Model Number: TS100 Certification: ISO, CE Rated Load:1200kg Bucket Capacity : 0.6m³ Warranty: 1 year Rotating Speed:3000rpm Rated Power:74kw Dimension:3795*2030*2160mm Place of Origin : Shandong china Turn Radius Forward Turning: 2439mm After-sale Service: Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | TS100 |
| Overall length/without bucket length | mm | 3795/3000 |
| Overall width/ without bucket width | mm | 2030/1994 |
| Overall height | mm | 2160 |
| Height to button of level bucket | mm | 2983 |
| Weight | ||
| Operating weight | kg | 4800 |
| Rated load | Kg | 1200 |
| Power | ||
| Engine model | WP4.1 | |
| Engine Manufacturer | WINCHAI | |
| Engine rated power | kw/rpm | 74/2200 |
| Engine displacement | L | 4.088 |
| Emisson standard | 国III | |
| Travel | ||
| Travel max speed | km/h | 12/18 |
| Main performance | ||
| Max. operating height | mm | 4070 |
| Max.pin height | mm | 3150 |
| Max. dumping height | mm | 2450 |
| Max. dumping reach | mm | 700 |
| Max.traction | KN | ≥30 |
| Max.breakout | KN | ≥20 |
| Wheel base | mm | 1500 |
| Ground clearance | mm | 200 |
| Bucket width | mm | 2030 |
| Tread width | mm | 1654 |
| Turn radius forward turning | mm | 2439 |
| Turn radius forward turning without bucket | mm | 1365 |
| Turn radius rear turning | mm | 1617 |
| Rear axle to bumper | mm | 938 |
| Angle of departure | ° | 20 |
| Dumping angle at max. height | ° | 40 |
| Rollback of bucket on ground | ° | 30 |
| Rollback of bucket at full height | ° | 104 |
| Working time | ||
| Raise | s | 7 |
| dump | s | 1.5 |
| Lower | s | 4 |
