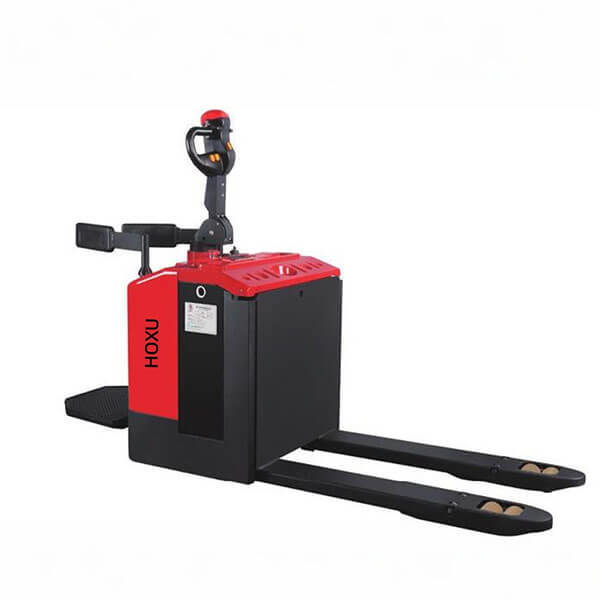

Stand-on full-electric pallet truck HX13005
Quick Details
Feature: Stand-on full-electric pallet truck Condition: New Application: Warehouse/Logistic Certification: ISO, CE Model Number:HX13005 Overall weight: 800 kg Rated load capacity: 2000-3000kg Max.lifting height: 205mm Dimension: 1914*795 mm Place of origin: shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX13005 | HX13006 |
| Overall length | mm | 1914 | 1914 |
| Overall width | mm | 795 | 795 |
| Fork dimensions | mm | 1150*160*56 | 1150*160*56 |
| Fork outer width | mm | 550-680 | 550-680 |
| Weight | |||
| Overall weight | kg | 800 | 800 |
| Rated load capacity | kg | 2000 | 3000 |
| Power | |||
| Battery voltage/capacity | v/ah | 24/210 | 24/210 |
| Drive motor power | kw | 2.2 | 2.2 |
| Lifting motor power | kw | 2.0 | 2.0 |
| Travel | |||
| Travel speed(loaded/unloaded) | km/h | 3.6/5.4 | 3.6/5.4 |
| Lifting speed(loaded/unloaded) | mm/s | 22/32 | 22/32 |
| Lowering speed(loaded/unloaded) | mm/s | 55/50 | 55/50 |
| Main performance | |||
| Operation type | Stand-on | Stand-on | |
| Drive type | Full electric | Full electric | |
| Max. lifting height | mm | 205 | 205 |
| Load centre distance | mm | 500 | 500 |
| Fork ground clearance | mm | 85 | 85 |
| Gradeability（loaded/unloaded） | ° | 8 | 8 |
| Min. Turning radius | mm | 1650 | 1650 |
| Braking | Electromagnetic | Electromagnetic | |
