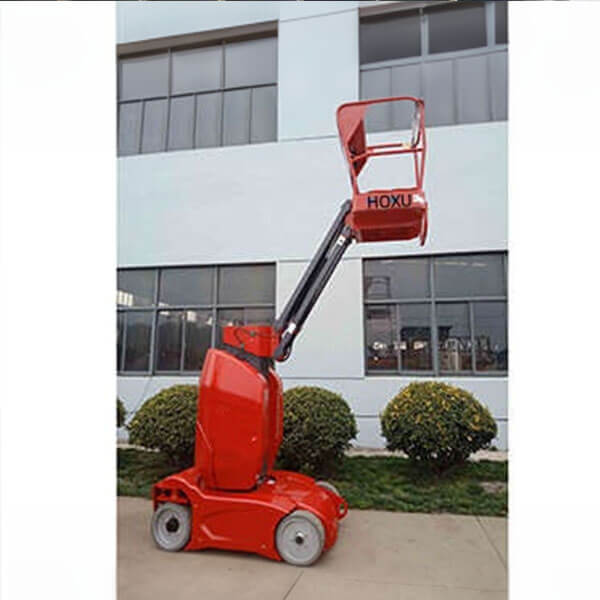

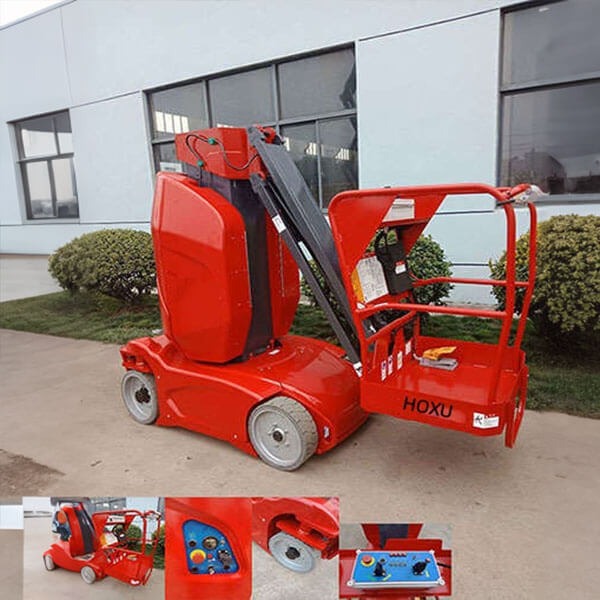

Telescopic sleeve aerial work platform HX80J
Quick Details
Feature: Telescopic sleeve aerial work Condition: New Application: Construction Certification: ISO, CE Model Number: HX80J Overall weight: 2800-2870 kg Rated load capacity: 200kg Max. platform height: 6000-8000mm Dimension: 2700*990*1990 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX80J | HX100J |
| Overall length | mm | 2700 | 2700 |
| Overall width | mm | 990 | 990 |
| Overall height | mm | 1990 | 1990 |
| Platform dimension | mm | 910*670*1100 | 910*670*1100 |
| Weight | |||
| Overall weight | kg | 2800 | 2870 |
| Rated load capacity | kg | 200 | 200 |
| Power | |||
| Battery voltage/capacity | v/ah | 24/240 | 24/240 |
| Travel | |||
| Travel speed(stowed) | km/h | 4.5 | 4.5 |
| Travel speed(extended) | mm/s | 0.7 | 0.7 |
| Main performance | |||
| Max.platform height | mm | 6000 | 8000 |
| Max.working height | mm | 8000 | 10000 |
| Max.horizontal | mm | 3150 | 3150 |
| Ground clearance (centre) | mm | 81 | 81 |
| Ground clearance of pothole guard | mm | 33 | 33 |
| Gradeability（loaded/unloaded） | % | 23 | 23 |
| Min. Turning radius | mm | 1800 | 1800 |
| Wheelbase | mm | 1200 | 1200 |
| Outer turning radius | mm | 1750 | 1750 |
| Inner turning radius | mm | 0 | 0 |
| Jib swing range | mm | -60°/+60° | -60°/+60° |
| Longitudinal tile angle | ° | 3 | 3 |
| Tyre size | mm | 406*125 | 406*125 |
