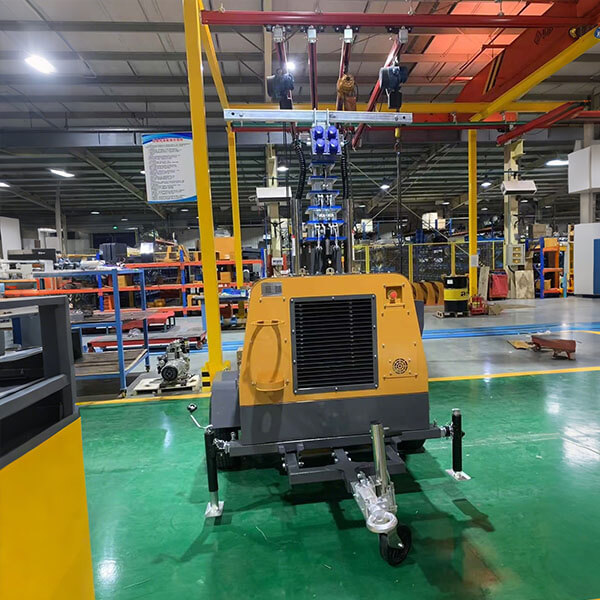

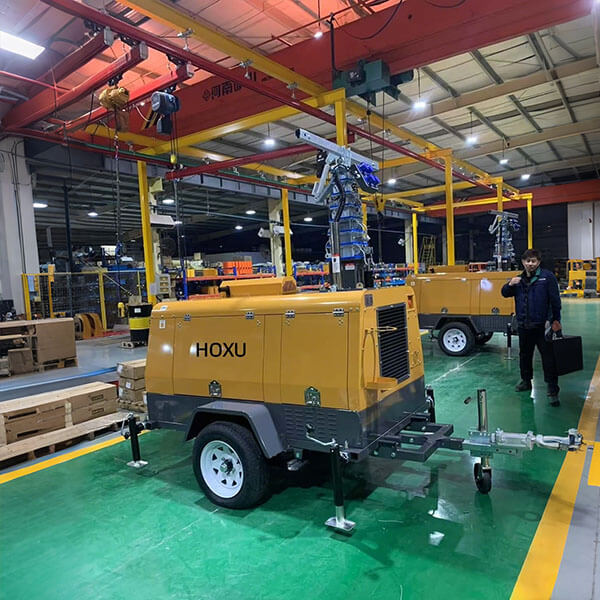

Trailer hand-lifting mobile lighting tower HXVP4000
Quick Details
Feature: Mobile lighting vehicle Condition: New Application: Construction Certification: ISO, CE Model Number:HXVP4000 Lamp source type:LED Operating Weight: 1360 kg Power lamp quantity: 4*400 w Luminous flux: 440000 lm Continous working time:65 h Dimension:3600*1670*2480 mm Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HXVP4000 | |
| Length | mm | 3600 | |
| Width | mm | 1670 | |
| Height | mm | 2480 | |
| Weight | |||
| Operating weight | kg | 1360 | |
| Power | |||
| Generator brand | CHANGCHAI | KUBOTA | |
| Generator model | 3M78 | D1105 | |
| Generator type | Three cylinder，Water-cooled four-stroke | ||
| Generator rated power | Kw/ram | 11.5/1500 | 18.6/1800 |
| Burning method | E-TVS | ||
| Intake method | Naturally aspirated | ||
| Emission class | conventional | ||
| Generator standard configuration | Sparks | ||
| Rated voltage(50/60hz) | V | 230/240-120 | |
| Continuous working time | H | 65 | |
| Motor insulation class | H | ||
| Motor protection class | IP23 | ||
| Output socket | pcs | 1 | |
| Main performance | |||
| Power lamp quantity | Pcs | 400W*4 | |
| Headlights | LED | ||
| Luminous flux | Lm | 440000 | |
| Irradiation distance | m | 300 | |
| Num. Of pole sectons | 8 | ||
| Unit start method | Key start method | ||
| Max. Wind speed | m/s | 20 | |
| Suspension &Brakes | Leaf spring suspension&Single axle without brake | ||
| Drawbar | Adjustable lever with retractable adjustable guide wheel | ||
| Stabilizing leg | Retractable support legs | ||
| Telescopic legs | Vertical | ||
| Lifting and lowering method | Hydraulic automatic lifting | ||
| Max. Lift height | m | 9 | |
| Tire size | ‘’ | 14 | |
| Max. Traction speed | Km/h | 80 | |
| Fuel tank capacity | L | 90 | |
