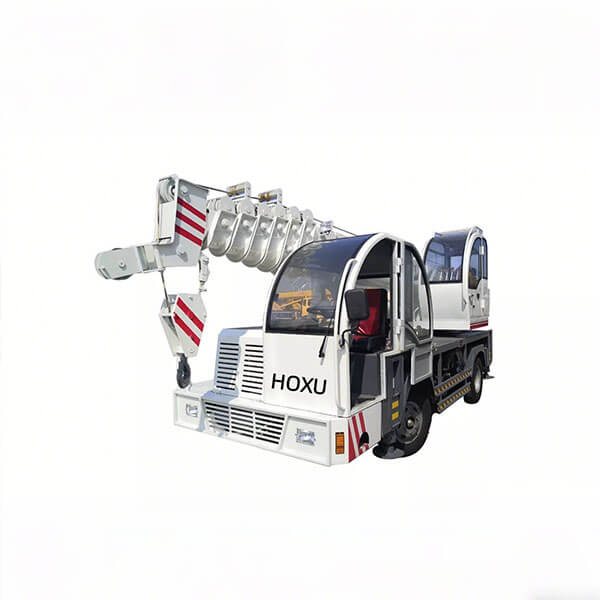

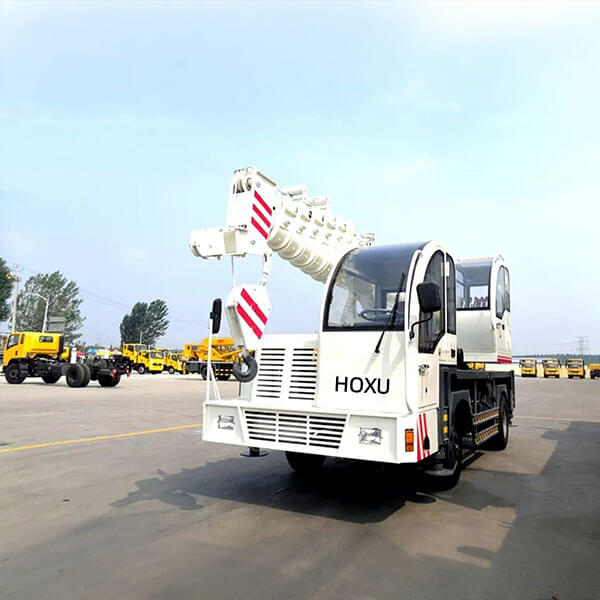

Truck Crane HWQY6T
Quick Details
Feature: Truck Crane Condition: New Application: Construction Certification: ISO, CE Model Number: HWQY6T Operating weight: 6500 kg Rated power: 37kw(51hp) Max.rated lifting capacity: 6T Max. lifting height: 25-28 m Boom structure type: 3/4m 7-section Dimension: 5200*1900*2300 Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | HWQY6T |
| Overall length | mm | 5200 |
| Overall width | mm | 1900 |
| Overall height | mm | 2300 |
| Weight | ||
| Total weight | kg | 6500 |
| Power | ||
| Engine model | 490 | |
| Engine rated power | kw/hp | 37/51 |
| Emission standard | National III | |
| Main performance | ||
| Transimission model | 6-speed gearbox | |
| Chassis model | WEICHAI | |
| Wheelbase | mm | 1800/2000(optional) |
| Max. rated lifting capacity | Kg | 6000 |
| Max. Lifting height | mm | 25000-28000(optional) |
| Braking system | Airbrake | |
| Steering mechanism | Hydraulic power steering | |
| Boom structure type | 3/4 m 7-section | |
| Main hoisting mechanism | 6 Twinch | |
| Slewing support | External gear 1m | |
| Slewing mechanism | Planetary steering | |
| Outriggers/legs | 5 fully hydraulic outriggers(single section) | |
| Outriggers span | mm | 4200 |
| Single outriggers span | mm | 3900 |
| Working lights | 2 | |
| Hydraulic pump | Singler pump | |
| Dual power(diesel/electric) | 11kw IP6 pole motor | |
| Tires | 750-16 | |
