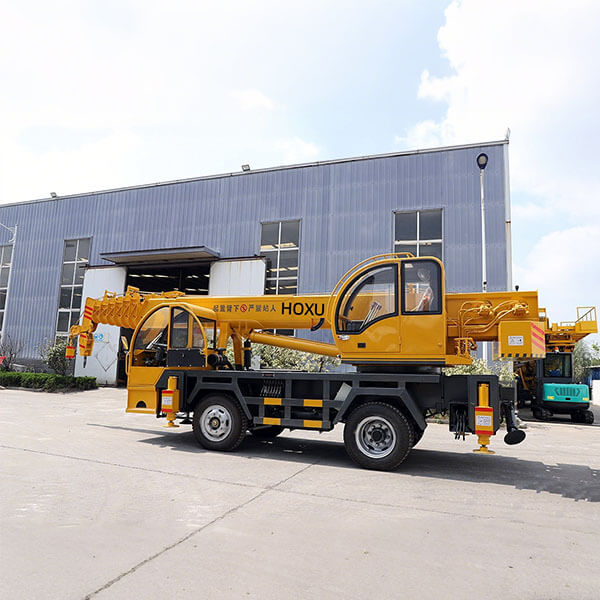

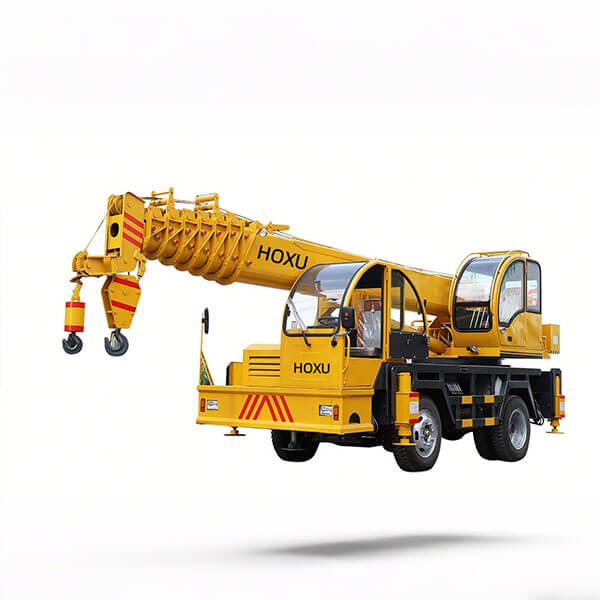

Truck Crane HXQY10T
Quick Details
Feature: Truck Crane Condition: New Application: Construction Certification: ISO, CE Model Number: HXQY10T Operating weight: 10000 kg Rated power: 53kw(72hp) Max.rated lifting capacity: 10T Max. lifting height: 24-29 m Boom structure type: 5m 6/7-section Dimension: 8000*2060*3000 Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HXQY10T |
| Overall length | mm | 8000 |
| Overall width | mm | 2060 |
| Overall height | mm | 3000 |
| Weight | ||
| Total weight | kg | 11000 |
| Power | ||
| Engine model | 4105 | |
| Engine rated power | kw/hp | 53/72 |
| Emission standard | National III | |
| Main performance | ||
| Transimission model | WANLIYANG 6-speed gearbox | |
| Chassis model | WEICHAI | |
| Wheelbase | mm | 2500(optional) |
| Max. rated lifting capacity | Kg | 10000 |
| Max. Lifting height | mm | 24000-29000 |
| Braking system | Air brake | |
| Steering mechanism | Hydraulic power steering | |
| Boom structure type | 5 m 6/7-section | |
| Main hoisting mechanism | 10 Twinch | |
| Auxiliary mechanism | 6 Twinch | |
| Slewing support | External gear 1.3 m | |
| Slewing mechanism | Planetary steering | |
| Outriggers/legs | 6 fully hydraulic outriggers(single section) | |
| Outriggers span | mm | 4200/5000 |
| Safety devices | mm | Bidrectional hydraulic lock |
| Working lights | 2 | |
| Hydraulic pump | Single pump | |
| Dual power | 11kw IP6 pole motor | |
| Tires | 825-16 | |
