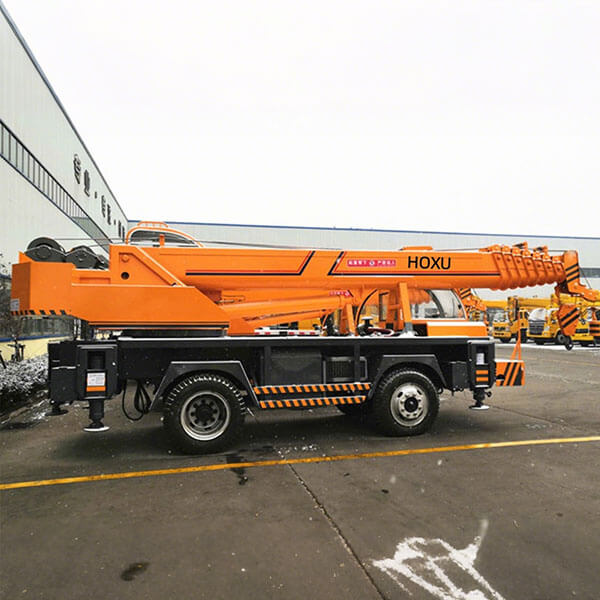

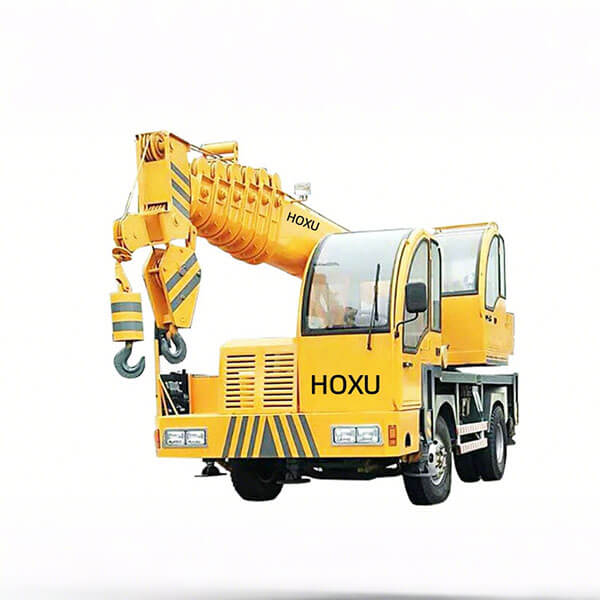

Truck Crane HWQY12T
Quick Details
Feature: Truck Crane Condition: New Application: Construction Certification: ISO, CE Model Number: HWQY12T Operating weight: 12000 kg Rated power: 53kw(72hp) Max.rated lifting capacity: 12T Max. lifting height: 28 m Boom structure type: 5m 8-section Dimension: 9500*2250*3100 Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | HWQY12T |
| Overall length | mm | 9500 |
| Overall width | mm | 2250 |
| Overall height | mm | 3100 |
| Weight | ||
| Total weight | kg | 13000/14000 |
| Power | ||
| Engine model | 4105 | |
| Engine rated power | kw/hp | 53/72 |
| Emission standard | National III | |
| Main performance | ||
| Transimission model | WANLIYANG 6-speed gearbox | |
| Chassis model | WEICHAI | |
| Wheelbase | mm | 2800/3100(optional) |
| Max. rated lifting capacity | Kg | 12000 |
| Max. Lifting height | mm | 28000、34000、38000 |
| Braking system | Air brake | |
| Steering mechanism | Hydraulic power steering | |
| Boom structure type | 5 m 8-section、6m 7-section、6m 8-section | |
| Main hoisting mechanism | 12 Twinch | |
| Auxiliary mechanism | 6 Twinch/12Twinch | |
| Slewing support | External gear 1.3 m/ the internal gear 1.44m | |
| Slewing mechanism | Planetary steering | |
| Outriggers/legs | 6 fully hydraulic outriggers(double section) | |
| Outriggers span | mm | 4600/6200 |
| Outriggers span(singler) | mm | 6100 |
| Protection devices | mm | Bidirectional hydraulic lock |
| Working lights | 2 | |
| Hydraulic pump | Single pump | |
| Hydraulic/electric Dual-ues | 11kw/15kw IP6 pole motor | |
| Tires | 825-20 | |
