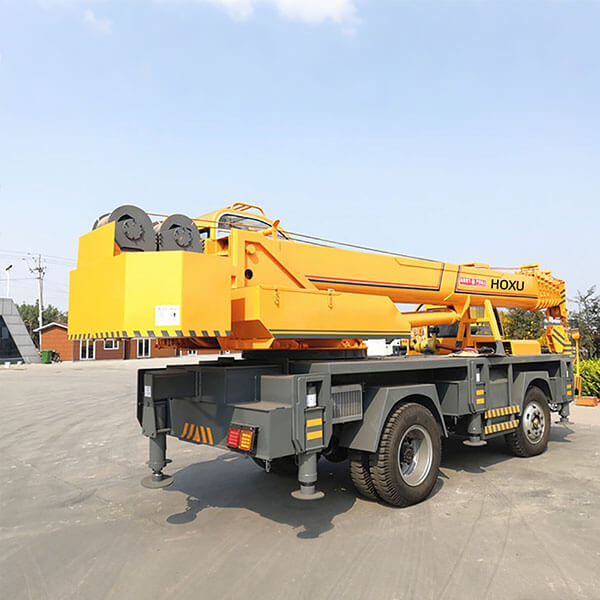

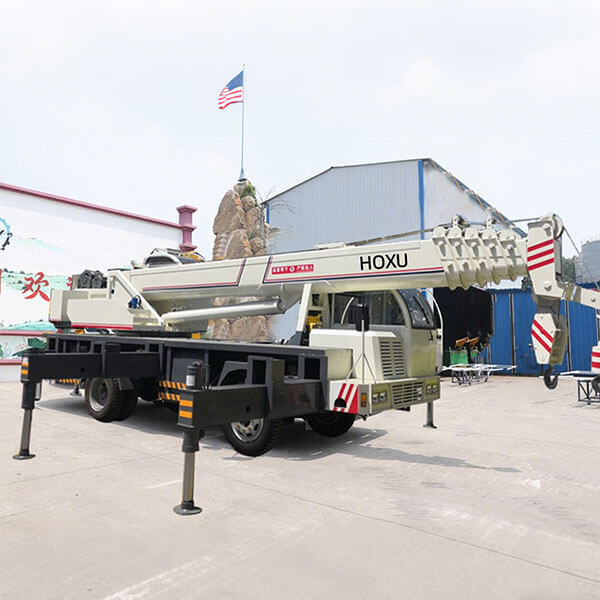

Truck Crane HXQY16T
Quick Details
Feature: Truck Crane Condition: New Application: Construction Certification: ISO, CE Model Number: HXQY16T Operating weight: 16000 kg Rated power: 95kw(130hp) Max.rated lifting capacity: 16T Max. lifting height: 30/35 m Boom structure type: 7m 5-section Dimension: 10500*2450*3500 Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HXQY16T |
| Overall length | mm | 10500 |
| Overall width | mm | 2450 |
| Overall height | mm | 3500 |
| Weight | ||
| Total weight | kg | 16000 |
| Power | ||
| Engine model | 4108 Turbocharged | |
| Engine rated power | kw/hp | 95/130 |
| Emission standard | National III | |
| Main performance | ||
| Transimission model | WANLIYANG 6-speed gearbox | |
| Chassis model | WEICHAI | |
| Wheelbase | mm | 3900(optional) |
| Max. rated lifting capacity | Kg | 16000 |
| Max. Lifting height | mm | 30000/35000 |
| Braking system | Air brake | |
| Steering mechanism | Hydraulic power steering | |
| Boom structure type | 7 m 5-section internal routed rope
7m 5-section/6-section external routed rope |
|
| Main hoisting mechanism | 16 Twinch | |
| Auxiliary mechanism | 12Twinch | |
| Slewing support | External gear 1.4 m/ internal gear 1.5m | |
| Slewing mechanism | Planetary steering | |
| Outriggers/legs | 6 double-section support legs+ front and rear support legs, totaling 8 | |
| Outriggers span | mm | 6500 |
| Outriggers span(singler) | mm | 6700 |
| Protection devices | mm | Bidirectional hydraulic lock |
| Working lights | 2 | |
| Hydraulic pump | Twin pump | |
| Hydraulic/electric Dual-ues | 15kw IP6 pole motor 40/32 | |
| Tires | 825-20 | |
