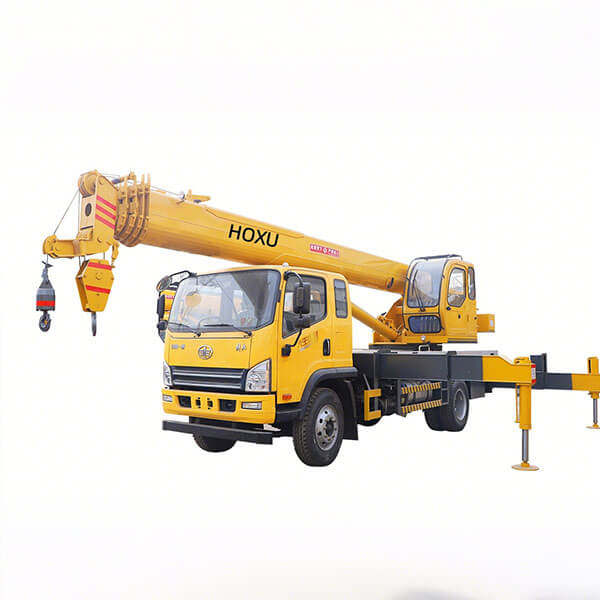

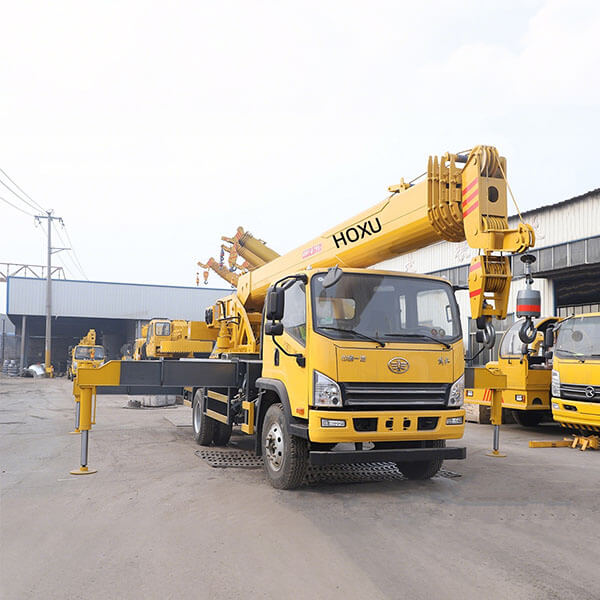

Truck Mounted Crane HXKM12T
Quick Details
Feature: Truck Mounted Crane Condition: New Application: Construction Certification: ISO, CE Model Number: HXKM12T Operation weight: 12000 kg Rated power: 140kw Max.rated lifting capacity: 12T Max. lifting height: 31.5 m Boom structure type: 7.3m 5-section Dimension: 10380*2380*3330 Place of Origin : Shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HXYQJF12T |
| Overall length | mm | 10380 |
| Overall width | mm | 2380 |
| Overall height | mm | 3330 |
| Weight | ||
| Operation weight | kg | 16000 |
| Power | ||
| Engine model | WEICHAI | |
| Engine rated power | kw | 140 |
| Emission standard | National VI | |
| Main performance | ||
| Transission | FAST8-speed gearbox(fashite) | |
| Chassis model | FAW | |
| Wheelbase | mm | 4200 |
| Max. rated lifting capacity | kg | 12000 |
| Max. Lifting height | mm | 31500 |
| Outrigger span(horizontal*vertical) | mm | 6400*5000 |
| Braking system | Air brake | |
| Boom structure type | 7.3 m 5-section singler board arm, internal rope walking | |
| Motor power | kw | 15 |
| Main frame structure | mm | Large box-type frame |
| Rotation speed | rap | 0-3 |
| Max. travel speed | Km/h | 90 |
| Reducer model | Planetary ruducer | |
| Slewing support | Internal rope walking 1.4m | |
| Steering mode | Hydraulic power assist | |
| Hydraulic system | Dual-pump confluence system | |
| Main hoist winch | 12T winch | |
| Auxiliary hoist winch | 12T winch | |
| Driver cabin | XCMG | |
| Tire model | 900R20 steel-belted tire | |
