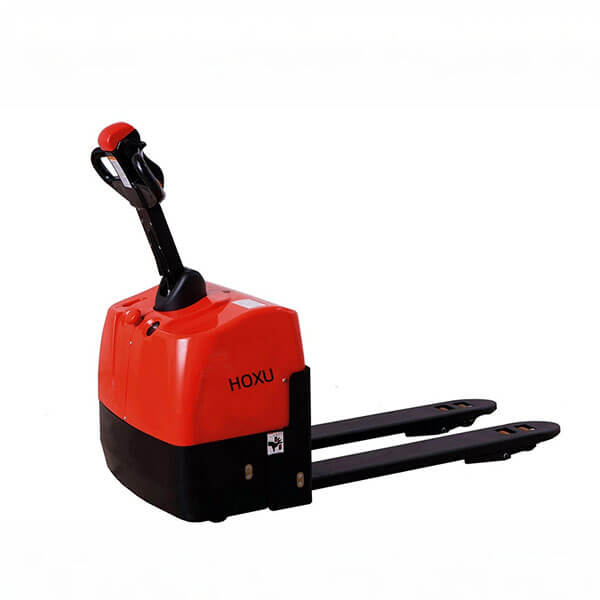

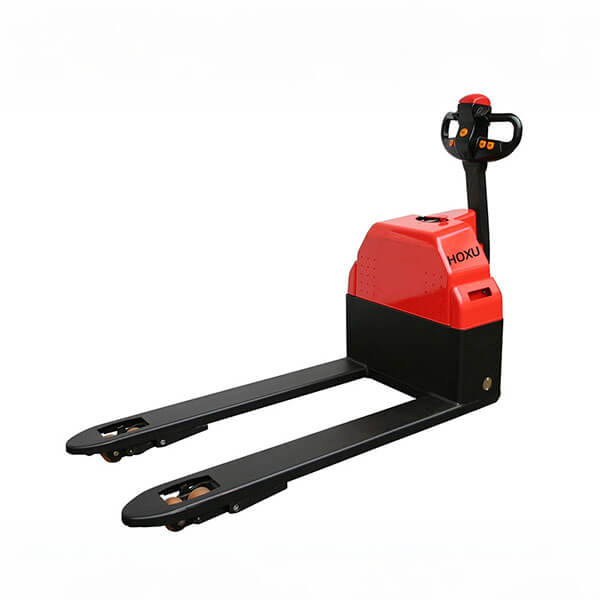

Walkie full-electric pallet truck HX13001
Quick Details
Feature: Walkie full-electric pallet truck Condition: New Application: Warehouse/Logistic Certification: ISO, CE Model Number:HX13001 Overall weight:205-300 kg Rated load capacity: 1300-2000kg Max.lifting height: 205mm Dimension: 1600*560-685 mm Place of origin: shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX13001 | HX13002 | HX13003 | HX13004 |
| Overall length | mm | 1600 | 1600 | 1600 | 1600 |
| Overall width | mm | 560-685 | 560-685 | 560-685 | 560-685 |
| Fork dimensions | mm | 1150*115*55 | 1150*115*55 | 1150*115*55 | 1150*115*55 |
| Fork outer width | mm | 560-685 | 560-685 | 560-685 | 560-685 |
| Aisle width(pallet size 800*1000mm) | mm | 1930 | 1930 | 1930 | 1930 |
| Aisle width(pallet size 1000*1200mm) | mm | 1779 | 1946 | 1946 | 1946 |
| Weight | |||||
| Overall weight | kg | 205 | 225 | 280 | 300 |
| Rated load capacity | kg | 1300 | 1500 | 1800 | 2000 |
| Power | |||||
| Battery voltage/capacity | v/ah | 24/60 | 12/120 | 12/120 | 12/150 |
| Drive motor power | kw | 0.6 | 0.63 | 0.65 | 0.65 |
| Lifting motor power | kw | 0.8 | 0.85 | 1.1 | 1.1 |
| Travel | |||||
| Travel speed(loaded/unloaded) | km/h | 3.5/4 | 3.5/4 | 3.5/4 | 3.5/4 |
| Lifting speed(loaded/unloaded) | mm/s | 5.1/0.6 | 5.1/0.6 | 5.1/0.6 | 5.1/0.6 |
| Lowering speed(loaded/unloaded) | mm/s | 5.2/5.9 | 5.2/5.9 | 5.2/5.9 | 5.2/5.9 |
| Main performance | |||||
| Operation type | Walk-behind | Walk-behind | Walk-behind | Walk-behind | |
| Max. lifting height | mm | 205 | 205 | 205 | 205 |
| Load centre distance | mm | 600 | 600 | 600 | 600 |
| Fork ground clearance | mm | 85 | 85 | 85 | 85 |
| Gradeability（loaded/unloaded） | ° | 6 | 6 | 6 | 6 |
| Min. Turning radius | mm | 1475 | 1475 | 1475 | 1475 |
| Braking | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | |
