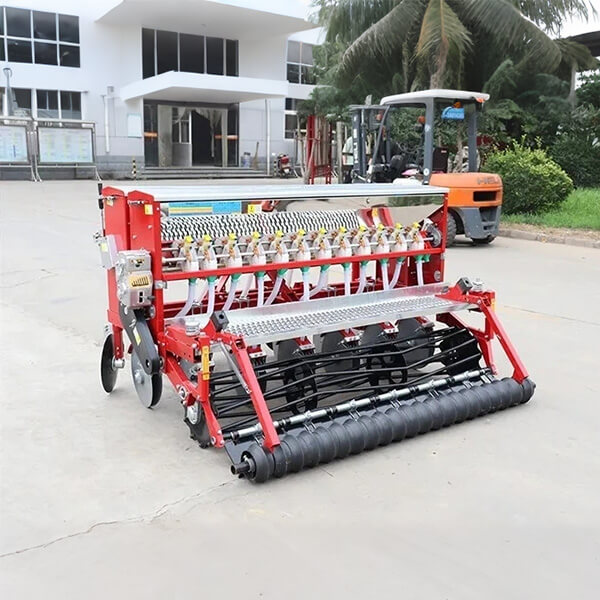

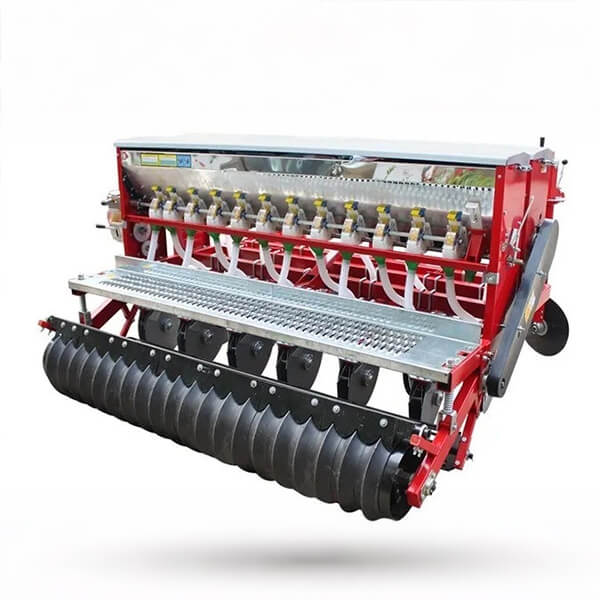

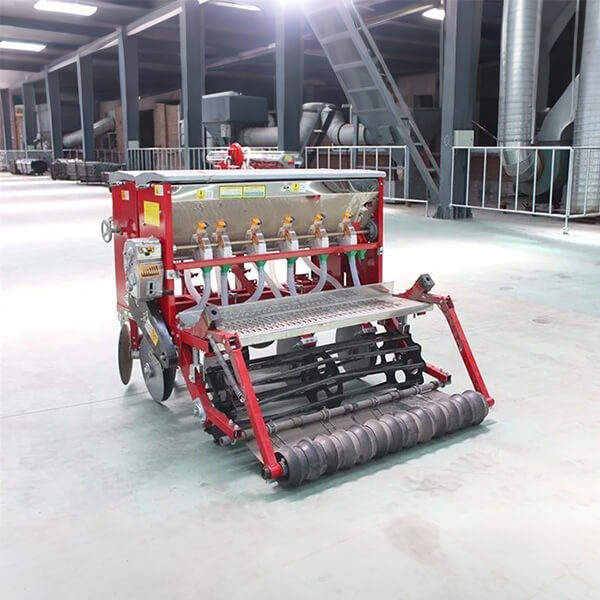

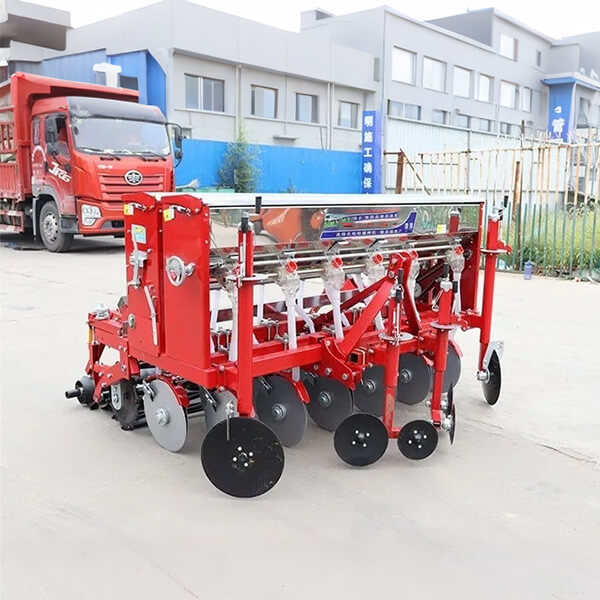

Wheat fertilizer seed drill HX006
Quick Details
Feature: Wheat fertilizer seed drill Condition: New Application: Agriculture Certification: ISO, CE Model Number:HX006 Overall weight: 240kg Matched tractor power:15-20 hp Seeding/fertilizing rows: 6 rows Basic row spacing: 220 mm Seeding/fettilizing depth: 20-50mm Dimension: 1670*1270*1096 mm Place of origin: shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX006 | HX009 | HX012 | HX014 | HX016 | HX020 |
| Overall length | mm | 1670 | 1710 | 1670 | 1950 | 1900 | 3200 |
| Overall width | mm | 1390 | 1650 | 1930 | 2310 | 2670 | 2500 |
| Overall height | mm | 1270 | 1270 | 1270 | 1270 | 1260 | 1800 |
| Weight | |||||||
| Overall weight | kg | 240 | 250 | 340 | 390 | 420 | 1000 |
| Main performance | |||||||
| Matched tractor power | Hp | 15-20 | 15-20 | 20-35 | 20-35 | 22-36.8 | 55-100 |
| Seeding/fertilizing rows | row | 6 | 9 | 12 | 14 | 16 | 20 |
| Basic row spacing | mm | 220(adjustable) | 160(adjustable) | 150(adjustable) | 150(adjustable) | 150(adjustable) | 150(adjustable) |
| Seeding/fertilizing depth | mm | 20-50 | 20-50 | 20-50 | 20-50 | 20-50 | 20-50 |
| Seeding rate | kg/ha | 450-900(adjustable) | 450-900(adjustable) | 450-900(adjustable) | 450-900(adjustable) | 450-900(adjustable) | 450-900(adjustable) |
| Fertilizing rate | Kg/ha | 375(adjustable) | 375(adjustable) | 435(adjustable) | 525(adjustable) | 525(adjustable) | 525(adjustable) |
| Applicition | 1. Adopts a new-type seed box and sprocket‑type seed metering device, enabling high‑speed operation with precise seeding rate. Equipped with two types of nail teeth (thick and thin), it can sow all grain-type seeds such as wheat, millet and rapeseed. Gear transmission is applied between the output shaft of the gearbox and the seed metering shaft, allowing accurate and convenient adjustment of seeding rate.
2. Features a new-type split-application fertilizer box with a rotatable fertilizer discharge port, ensuring flexible adjustment without fertilizer caking. The fertilizer application rate is regulated by a cover plate, which can be easily adjusted even when the fertilizer box is filled. It realizes separate application of seeds and fertilizer to avoid seedling burn. 3. The furrow opener is disc-type, with optional types including wide-seedling-zone disc opener, square-round tube angle opener, and spring-leg opener. |
||||||
