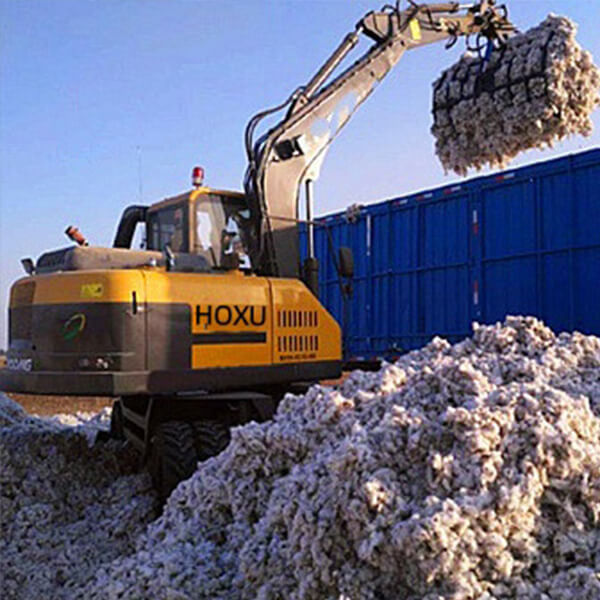

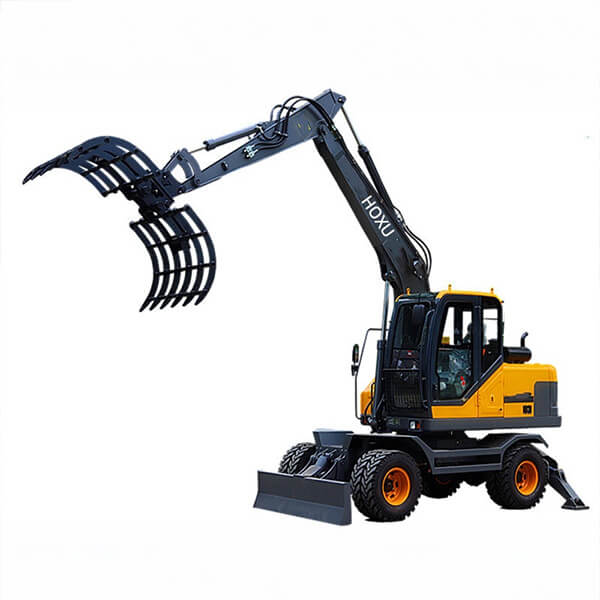

Wheel grass grapple HX95W
Quick Details
Feature: Wheel grass grapple Condition: New Application: Pasture/stockyard Certification: ISO, CE Model Number:HX95W Rated power : 55/65kw Max.dump height: 5200/5500 mm Max. loading reach: 7664 mm Max. lifting capacity: 1000kg Min. ground clearance: 280mm Dimension:6369*2106*2880mm Place of origin: shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX95W |
| Overall length | mm | 6369 |
| Overall width | mm | 2106 |
| Overall height | mm | 2880 |

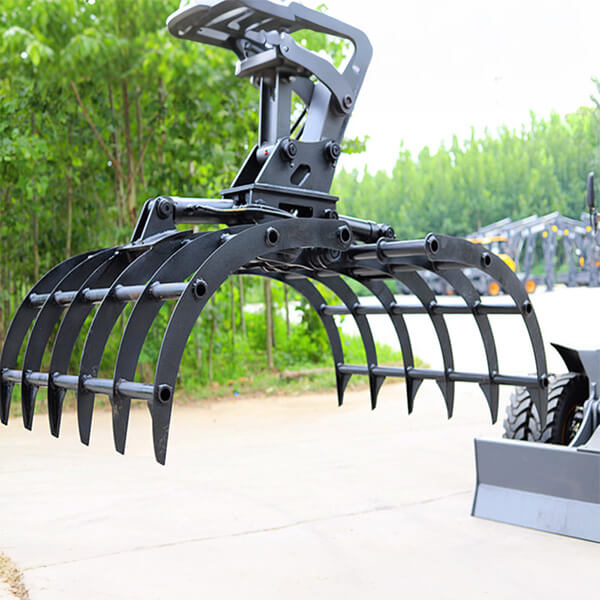

| Grapple dimension | mm | 1360*700*1300 |
| Boom length | mm | 3600 |
| Stick length | mm | 1900/2300 |
| Power | ||
| Engine type | 4-cylinder water-cooled, electronically injected, turbocharged national III emission standar | |
| Engine rated power | kw | 65/55 |
| Travel | ||
| Max.travel speed | km/h | 40 |
| Working range | ||
| Max. dumping height | mm | 5200/5500 |
| Max. loading reach | mm | 7664 |
| Max.lifting capacity | kg | 1000+10% |
| Main technical parameters | ||
| Min.ground clearance | mm | 280 |
| Gradeability | ° | 30 |
| Fuel tank capacity | L | 150 |
| Hydrauli oil tank capactiy | L | 170 |
| Tire model | 825-16 | |
