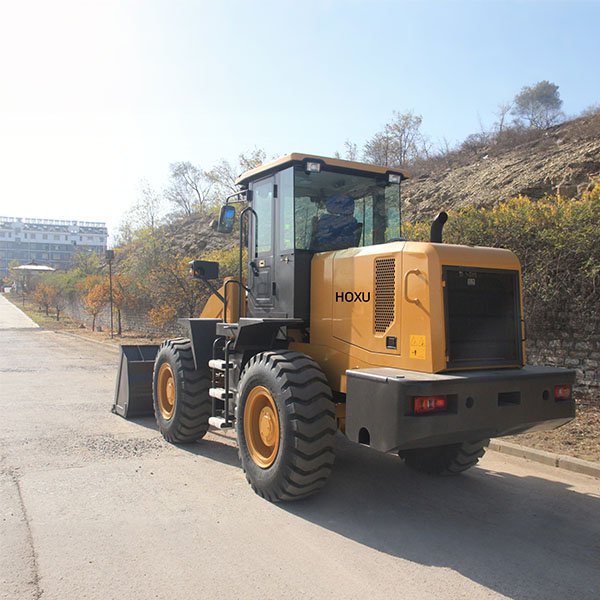

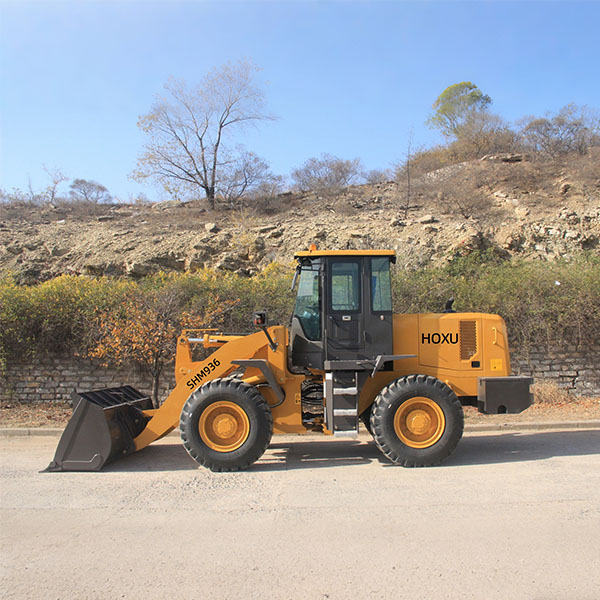

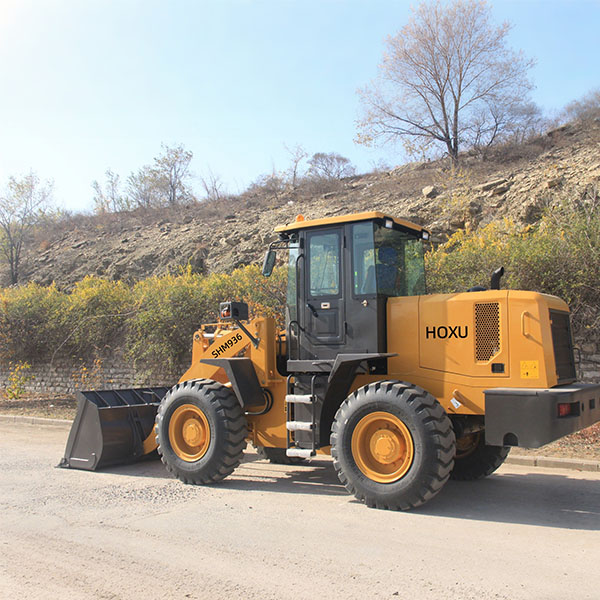

Wheel Loader SHM-936
Quick Details
Feature: Wheel Loader Condition: New Application: Construction Model Number: SHM-936 Certification: ISO, CE Rated loading capacity: 3.0T Bucket Capacity : 1.7m³ Dimension:7120*2375*3230mm Place of Origin : Shandong china Max. Lifting Load: 3.0T Engine:WP6G125E22 Warranty: 1 year Color: Yellow After-sale Service : Any time availbal
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimention | Unit | SHM-936 |
| Overall length | mm | 7120 |
| Overall width | mm | 2375 |
| Overall height | mm | 3230 |
| Weight | ||
| Operating weight | kg | 10200 |
| Rated load | kg | 3000 |
| Power | ||
| Engine manufacturer | DEUTZ | |
| Engine model | WP6G125E22 | |
| Type | Vertical, in-line, water cooled 4-stroke diesel engine | |
| No. Of cylinder-bore*stroke | 6-108*125 | |
| Engine rated power | kw | 92 |
| Max torque | N.m | 500 |
| Min fuel consumer ratio | w/h | ≤210 |
| Travel | ||
| Travel max speed | km/h | 38 |
| Transmission system | ||
| Transmission model | YJ320B-I | |
| Gearbox model | Power shaft normallly engaged straight gear | |
| Torque converter type | Variable-speed transmission | |
| Gears | 4F/4R | |
| Drive axles | ||
| Main reducing spiral | Bevel gear grade reduction | |
| Decelerating mode | Planetary reduction grade I | |
| Main performance | ||
| Rated load | t | 3000 |
| Operation weight | t | 10200 |
| Bucket capacity | m³ | 1.7 |
| Max tractiong force | kn | 98 |
| Max breakout force | kn | 120 |
| Max grade ability | ° | 30 |
| Max dumping height | mm | 3100 |
| Max dumping reach | mm | 1130 |
| Min turning radius | mm | 5464 |
| Wheel base | mm | 2740 |
| Ground clearance | mm | 400 |
| Tread | mm | 1690 |
| Service brake | Air assist disc brake on wheels | |
| Parking brake | Manual disk brake | |
| Wheel-mounted deceleration type | Large-wheel side reduction gear box | |
| Tyre specification | 17.5–25 | |
| Front Tyre pressure | Mpa | 0.4 |
| Rear tyre pressure | Mpa | 0.3 |
