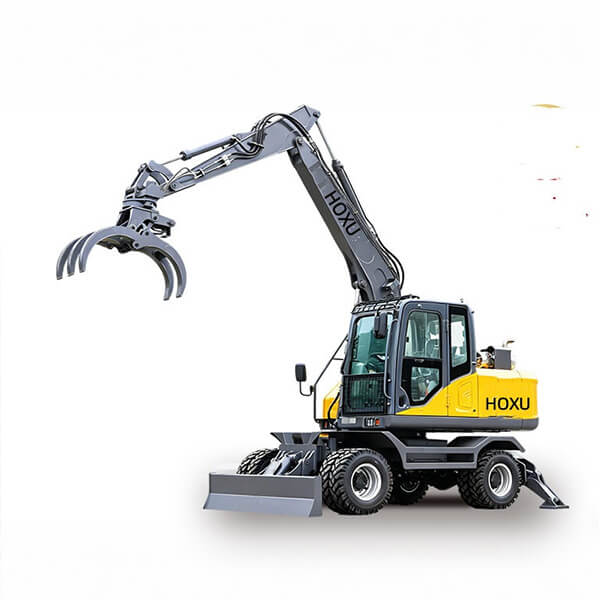

Wheel log grapple HX95E
Quick Details
Feature: Wheel log grapple Condition: New Application: Forest farm/timber yard Certification: ISO, CE Model Number:HX95E Overall weight: 8900kg Rated power : 65kw Max.lifting height: 7985mm Max. dump height: 5320 mm Max. dump capacity: 1000kg Dimension:6580*2200*2940mm Place of origin: shandong china Warranty: 1 year After-sale Service : Any time available
Packaging&Delivery
Packaging Details: Nude package shipped by Ro-Ro or Bulk shipment
Delivery Detail: 10-35 days
Main Features
1.More excellent performance
2.More reliable quality
3.Easier to operate
4.Easier to maintain
5.More energy-efficient and environmental friendly
Technical Parameters
| Dimension | Unit | HX95E |
| Overall length | mm | 6580 |
| Overall width | mm | 2200 |
| Overall height(to top of cab) | mm | 2940 |
| Overall height（to top of boom） | mm | 3075 |
| Weight | ||
| Overall weight | kg | 8900 |
| Power | ||
| Engine manufacturer | YUCHAI | |
| Engine rated power | kw | 65 |
| Travel | ||
| Max.travel speed | km/h | 30 |
| Working range | ||
| Max. lifting height | mm | 7985 |
| Max. dumping height | mm | 5320 |
| Max.grabbing depth | mm | 3840 |
| Max.grabbing radium | mm | 7345 |
| Max. Load/unload capacity | kg | 1000 |
| Front swing radius | mm | 2895 |
| Tail turning radius | mm | 2020 |
| Main performance | ||
| Wheelbase | mm | 2500 |
| Wheel track | mm | 1700 |
| Ground clearance of conterweight | mm | 1100 |
| Min.ground clearance | mm | 280 |
| Gradeability | ° | 30 |
| Max. Opening of th gripper | mm | 1300 |
| Bucket capacity | m³ | 0.3 |
| System pressure | Mpa | 21 |
| Blade lift height | mm | 400 |
| Blade drop depth | mm | 40 |
| Platform rotation speed | rpm | 9.5 |
| Fuel tank capacity | L | 170 |
| Hydrauli oil tank capactiy | L | 150 |
| Tire model | 825-16 | |
